QOU115 | QOU Miniature Circuit Breaker, 15A, 1P, 120/240V, 10kA | Square D

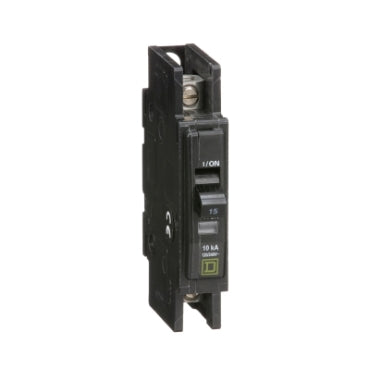

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU115

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOU115 Documents

Datasheet

Overview

Details for QOU115

QOU Miniature Circuit Breaker, 15A, 1P, 120/240V, 10kA

QO™ and QOU Miniature Circuit Breakers, QOU115, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 15 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 0.75 in (19.05 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: IEC;UL Listed;CSA
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901418504
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.90 in (2.286 cm)
Package 1 Width: 3.10 in (7.874 cm)
Package 1 Length: 4.50 in (11.43 cm)
Package 1 Weight: 5.60 oz (158.757 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 2772
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 1018.00 lb(US) (461.757 kg)
Unit Type of Package 3: CAR
Number of Units in Package 3: 66
Package 3 Height: 3.10 in (7.874 cm)
Package 3 Width: 14.20 in (36.068 cm)
Package 3 Length: 20.80 in (52.832 cm)
Package 3 Weight: 24.95 lb(US) (11.317 kg)
Warranty: 18 months
