GVAE11 | TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp | Schneider Electric (Square D)

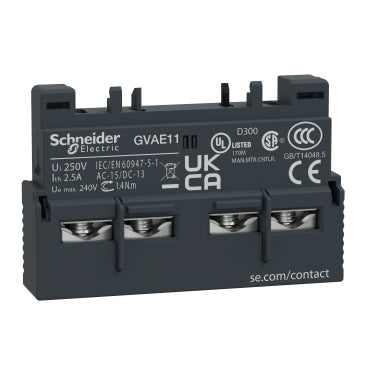

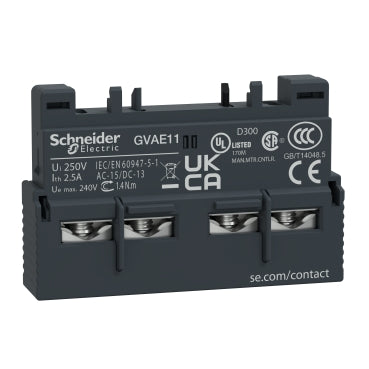

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GVAE11
Documents and manuals
Schneider Electric (Square D) GVAE11 Documents
Overview
Details for GVAE11
Schneider Electric (Square D) GVAE11 Auxiliary Contact (NO/NC)
The Schneider Electric (Square D) GVAE11 Auxiliary Contact is a front-mounted device that provides an additional normally open (NO) and normally closed (NC) contact to your control circuit. This versatile accessory enhances the functionality of your electrical system, allowing you to monitor and control multiple circuits simultaneously. The GVAE11 is designed for use with compatible Schneider Electric (Square D) contactors, offering a reliable and efficient solution for various industrial applications. Its compact size and easy installation make it a convenient choice for adding additional contacts to your system. Our HVAC supply store offers the best prices and fast shipping on the Schneider Electric (Square D) GVAE11 Auxiliary Contact. Shop our extensive inventory today and upgrade your electrical system with confidence! TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
- Range
- TeSys, TeSys Deca
- Device short name
- GVAE
- Product or Component Type
- Auxiliary contact block
- Product Compatibility
- GV2P, GV2RT, GV2ME, GV3L, GV2LE, GV3P, GV2L
- Mounting Location
- Front side
- Pole contact composition
- 1 NO + 1 NC
- Quantity per Set
- Set of 10
- [Ui] rated insulation voltage
- 300 V UL 508, 300 V CSA C22.2 No 14, 250 V IEC 60947-1
- [Ue] rated operational voltage
- 24...240 V AC, 24...60 V DC
- [Ith] conventional free air thermal current
- 2.5 A
- protection type
- GG fuse 10 A, GB2CB06 circuit breaker 10 A
- Mechanical durability
- 100000 cycles
- minimum switching current
- 5 mA
- minimum switching voltage
- 17 V
- rated operational power in VA
- 120 VA 110…120 V AC-15 100000 cycles, 120 VA 230…240 V AC-15 100000 cycles, 48 VA 24 V AC-15 100000 cycles, 60 VA 48 V AC-15 100000 cycles
- rated operational power in W
- 15 W 48 V DC-13 100000 cycles, 24 W 24 V DC-13 100000 cycles, 9 W 60 V DC-13 100000 cycles
- tightening torque
- 12.39 lbf.in (1.4 N.m) screw clamp terminals
- Height
- 0.43 in (11 mm)
- Width
- 1.77 in (45 mm)
- Depth
- 1.14 in (29 mm)
- Net Weight
- 0.04 lb(US) (0.02 kg)
- Environmental characteristic
- Normal environment
- Product Certifications
- UKCA
- Category
- 22367-MANUAL STR PROTECTOR - GV2
- Discount Schedule
- I11
- GTIN
- 3389110343434
- Returnability
- Yes
- Country of origin
- CZ
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.47 in (1.2 cm)
- Package 1 Width
- 2.36 in (6 cm)
- Package 1 Length
- 2.76 in (7 cm)
- Package 1 Weight
- 0.60 oz (17 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 2.44 in (6.2 cm)
- Package 2 Width
- 4.72 in (12 cm)
- Package 2 Length
- 2.91 in (7.4 cm)
- Package 2 Weight
- 6.14 oz (174 g)
- Unit Type of Package 3
- S02
- Number of Units in Package 3
- 220
- Package 3 Height
- 5.91 in (15 cm)
- Package 3 Width
- 11.81 in (30 cm)
- Package 3 Length
- 15.75 in (40 cm)
- Package 3 Weight
- 9.66 lb(US) (4.383 kg)
- Warranty
- 18 months
