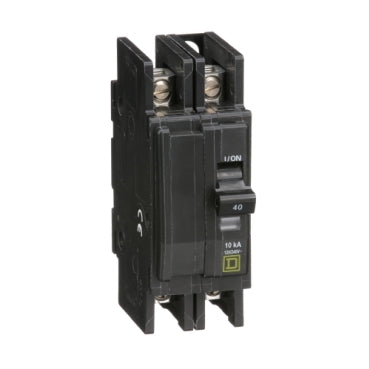

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOU240

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Square D QOU240 Documents

Datasheet More Info

Overview

Details for QOU240

MINIATURE CIRCUIT BREAKERS QOU, 40A, 2P, 120/240V, 10kA

QO™ and QOU Miniature Circuit Breakers, QOU240, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.

Specifications

Product or Component Type: Miniature circuit-breaker
Range of Product: QOU
circuit breaker type: Standard
circuit breaker application: HACR rated
Line Rated Current: 40 A
electrical connection: Slotted box lugs;line side;Slotted box lugs;load side
[Ue] rated operational voltage: 120/240 V AC;120 V AC;48 V DC
Mounting Mode: Unit mount
AWG gauge: AWG 14...AWG 2 aluminium/copper
Height: 4.05 in (102.87 mm)
Width: 1.5 in (38.10 mm)
Depth: 2.95 in (74.93 mm)
tightening torque: 45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
Product Certifications: CSA;UL Listed;IEC
Category: 00900-QOU BREAKERS & SWITCH
Discount Schedule: DE2
GTIN: 785901418740
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.20 in (5.588 cm)
Package 1 Width: 3.60 in (9.144 cm)
Package 1 Length: 4.90 in (12.446 cm)
Package 1 Weight: 12.00 oz (340.194 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 1008
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 782.00 lb(US) (354.709 kg)
Warranty: 18 months
