QBP22200TM | PowerPact Q Molded Case Circuit Breaker, 200A, 240V AC, 2-Pole, 10kA | Square D

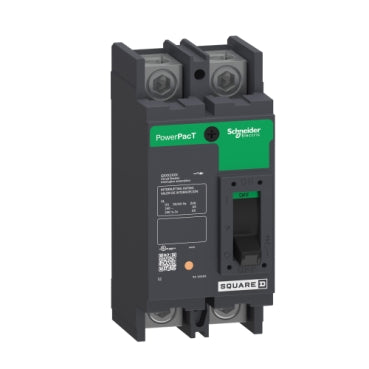

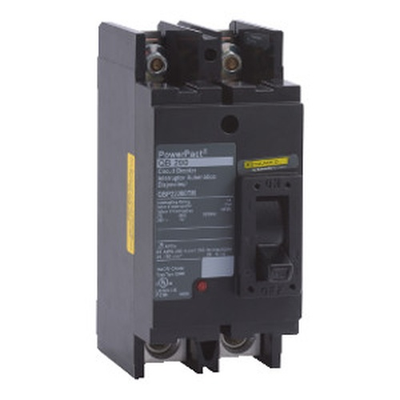

PowerPact Q Molded Case Circuit Breaker, 200A, 240V AC, 2-Pole, 10kA

PowerPact Q Molded Case Circuit Breaker

• Trip Unit Technology: Thermal-magnetic
• Provided Equipment: Lug OFF end, Stud with nut and washer ON end
• Line Rated Current: 150A
• System Voltage: 240V AC
• Number of Poles: 2-Pole
• Breaking Capacity: 10kA 240V AC
• Mounting Mode: Unit mount
• Electrical Connection: Lugs load AWG 4-300 kcmil aluminum/copper

The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 Vac, 250 A max. and are available in lug or bus-connected unit-mount constructions, or I-Line® group-mounted construction. PowerPact Q-frame circuit breakers are rated for 240 Vac (208Y/120 Vac for 3-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact Q, circuit breaker is a 2-pole and has a rated current of 200A. This breaker has a breaking capacity of 10kA@240VAC and has a continuous currrent rating of 80 %. This unit mounted breaker has a thermal-magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400A. Dimensions for this product are 6.47 in (H), 3.00 in (W), 3.93 in (D). This product complys to UL listed, CSA & IEC standards. This breaker complies to IEC, CSA & UL listed standards.
