9037EG8 | Float Switch: 575 VAC 1HP E + Options | Schneider Electric (Square D)

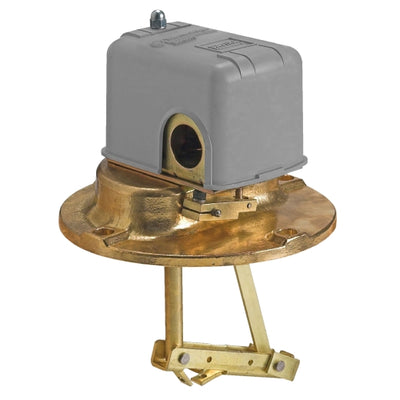

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037EG8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9037EG8 Documents

Datasheet More Info

Overview

Details for 9037EG8

The Schneider Electric (Square D) FLOAT SWITCH, model 9037EG8, is a highly reliable and precise level control device designed for liquid level detection and monitoring in various industrial and commercial applications. This float switch features a durable construction with a rugged housing and a dependable float mechanism, ensuring accurate and consistent liquid level monitoring. It employs a simple and effective float mechanism that actuates an electrical switch when the liquid level reaches a predetermined point, providing precise level control and reliable switching operations. The FLOAT SWITCH is versatile and can be utilized in a wide range of liquids, including water, oils, chemicals, and other compatible fluids. Key Benefits: - Accurate and reliable liquid level detection - Durable construction for harsh industrial environments - Simple float mechanism for precise level control - Versatile applications in various liquids - Dependable switching operations for reliable control Maximize efficiency and optimize your liquid level monitoring systems with the Schneider Electric (Square D) FLOAT SWITCH (9037EG8). Trust our HVAC supply store for the best prices and fast shipping on your industrial automation products. Contact us today to place your order!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037E
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Flange
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable fixed
Float position: Any
Float rod angle: Horizontal
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Materials in contact with fluid: Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Stainlesss steel 304
Yellow brass
Enclosure material: Polypropylene or equivalent
Operating position: Vertical or horizontal position
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.00 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 18.8 cm
Package 1 Width: 19.3 cm
Package 1 Length: 35.8 cm
Package 1 Weight: 1.89 kg
Warranty: 18 months
