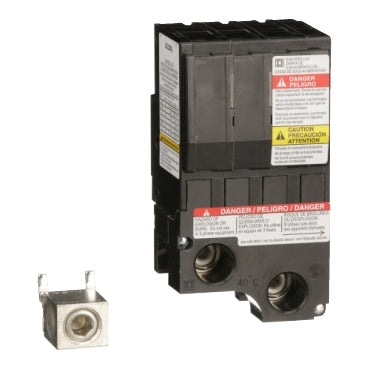

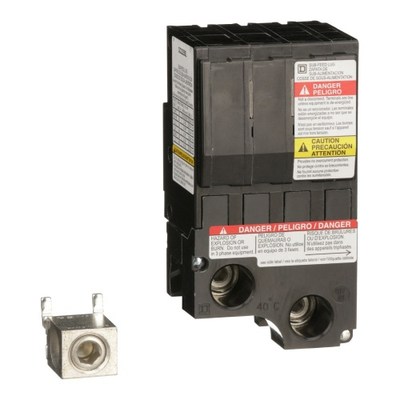

QO2225SL | CIRCUIT BREAKER SUB-FEED LUG | Square D
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO2225SL
Documents and manuals
Square D QO2225SL Documents
Overview
Details for QO2225SL
CIRCUIT BREAKER SUB-FEED LUG
Mini circuit breaker accessory, QO, lug kit, 225A, 2 pole, 2 spaces, subfeed QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO and QOB miniature circuit breaker subfeed lug kit is rated for 225 A, 2 pole, and 4 spaces. Lugs will accept 4 AWG to 300 kcmil aluminum or copper wire.Specifications
- Product Type
- Lug kit
- Marketing Trade Name
- QO
- Rated Current
- 225 A
- Number of Spaces
- 4
- Number of Phases
- 2 phases
- Voltage Rating
- 120/240 V AC
- Number of Poles
- 4
- Wire Size
- AWG 4...300 kcmil copper or aluminium
- Product Certifications
- cURus
- Mounting Mode
- Plug-in
- Height
- 3.500 in (88.90 mm)
- Width
- 2.988 in (75.90 mm)
- Depth
- 2.310 in (58.67 mm)
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Category
- 00080-QO SPECIALTY CB;1&2 POLE
- Discount Schedule
- DE2A
- GTIN
- 785901755708
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.60 in (11.684 cm)
- Package 1 Width
- 6.80 in (17.272 cm)
- Package 1 Length
- 7.70 in (19.558 cm)
- Package 1 Weight
- 2.36 lb(US) (1.071 kg)
- Warranty
- 18 months
