D224NRB | Safety switch, general duty, fusible, 200A, 3 wire, 2 poles, 1 neutral, 60hp, 240VAC, Type 3R, bolt on hub provision | Square D by Schneider Electric

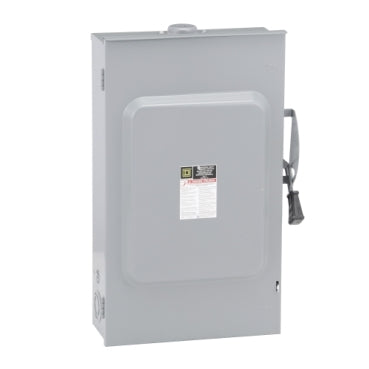

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D224NRB

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D D224NRB Documents

Datasheet

Overview

Details for D224NRB

Safety switch, general duty, fusible, 200A, 3 wire, 2 poles, 1 neutral, 60hp, 240VAC, Type 3R, bolt on hub provision

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 200A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short circuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 6/250 kcmil, aluminum/copper. This switch is certified to UL standards. Dimensions for this product are 29.25 in (H), 19 in (W), 8.5 in (D). General Duty safety switches come with an 18 months warranty. General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 200A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H, K, or R fuses. These general duty switches are UL listed.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Fusible disconnect switch
Factory Installed Neutral: Neutral (factory installed)
Phase: 3 phase
Number of Poles: 2
Current Rating: 200 A
Voltage Rating: 240 V AC
Enclosure Rating NEMA: NEMA 3R
Motor power hp: 15 hp at 240 V AC 60 Hz for 1 phase motors;25 hp at 240 V AC 60 Hz for 3 phase motors;60 hp at 240 V AC 60 Hz for 3 phase motors
Short Circuit Current Rating: 100 kA maximum depending on fuse H;K or R
fuse type: H;K or R
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 6...250 kcmil aluminium/copper
tightening torque: 275 lbf.in (31.07 N.m) (AWG 6...250 kcmil)
Depth: 8.5 in (215.90 mm)
Width: 19 in (482.60 mm)
Height: 29.25 in (742.95 mm)
Net Weight: 53.51 lb(US) (24.27 kg)
Certifications: UL listed file E2875
Category: 00106-D & DU SW;NEMA3R;30-200A
Discount Schedule: DE1A
GTIN: 785901460763
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.50 in (21.59 cm)
Package 1 Width: 19.50 in (49.53 cm)
Package 1 Length: 30.50 in (77.47 cm)
Package 1 Weight: 42.70 lb(US) (19.368 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 15
Package 2 Height: 45.00 in (114.3 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 670.00 lb(US) (303.907 kg)
Warranty: 18 months
