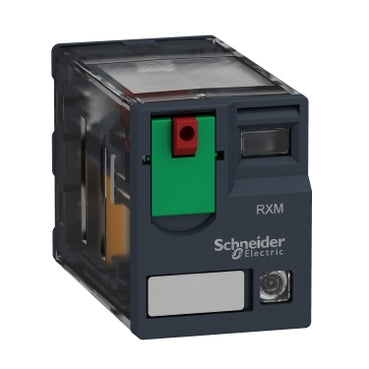

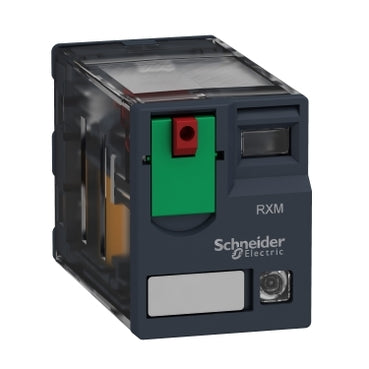

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RXM4AB2F7

Jump to: Overview Specifications Reviews

Overview

Details for RXM4AB2F7

Schneider Electric (Square D) RXM4AB2F7 4PDT Plug-In Relay: An Industrial PowerhouseThe Schneider Electric (Square D) RXM4AB2F7 is a 4PDT (4 Pole, Double Throw) plug-in relay renowned for its robust design and exceptional performance. Ideal for demanding industrial applications, this relay offers unmatched reliability and efficiency. Key Features: * 10-pack for economical bulk purchases * 4PDT configuration for controlling multiple circuits * Plug-in design for ease of installation and maintenance * Durable construction ensures longevity in harsh industrial environments Technical Specifications: * Configuration: 4PDT * Voltage: 24VDC * Coil Power: 2.2W * Contact Rating: 10A @ 250VAC * Operating Temperature: -40Â°C to +70Â°C Applications: * Industrial control systems * Automation equipment * Process plants * Robotics * Power distribution systems Choose Schneider Electric (Square D) RXM4AB2F7 4PDT Plug-In Relay for your demanding industrial needs. Its rugged construction, exceptional performance, and cost-effective bulk packaging make it a reliable and economical choice. Shop our HVAC supply store for the best prices and fast shipping on all your industrial products! Zelio Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Zelio plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Zelio plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Zelio plug in relays are UL Listed. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Specifications

Range of Product: Harmony Electromechanical Relays
series name: Miniature
Product or Component Type: Plug-in relay
device short name: RXM
contacts type and composition: 4 C/O
[Uc] control circuit voltage: 120 V AC 50/60 Hz
Status LED: With
Control Type: Lockable test button
utilisation coefficient: 20 %
shape of pin: Flat
[Ui] rated insulation voltage: 250 V IEC;300 V CSA;300 V UL
[Uimp] rated impulse withstand voltage: 2.5 kV 1.2/50 µs
contacts material: AgNi
[Ie] rated operational current: 3 A 28 V DC) NC IEC;3 A 250 V AC) NC IEC;6 A 28 V DC) NO IEC;6 A 250 V AC) NO IEC;6 A 277 V AC) UL;8 A 30 V DC) UL
continuous output current: 5 A
maximum switching voltage: 250 V IEC
resistive rated load: 6 A 250 V AC;6 A 28 V DC
maximum switching capacity: 1500 VA/168 W
minimum switching capacity: 170 mW 10 mA;17 V
operating rate: <= 1200 cycles/hour under load;<= 18000 cycles/hour no-load
mechanical durability: 10000000 cycles
electrical durability: 100000 cycles resistive
average coil consumption in VA: 1.2 60 Hz
average consumption: 1.2 VA 60 Hz
drop-out voltage threshold: >= 0.15 Uc
operate time: 20 ms
release time: 20 ms
average coil resistance: 4430 Ohm 20 °C +/- 15 %
rated operational voltage limits: 96...132 V AC
safety reliability data: B10d = 100000
protection category: RT I
test levels: Level A
operating position: Any position
CAD overall height: 3.26 in (82.8 mm)
CAD overall depth: 3.16 in (80.35 mm)
Net Weight: 0.08 lb(US) (0.037 kg)
device presentation: Complete product
dielectric strength: 1300 V AC between contacts with micro disconnection;2000 V AC between coil and contact with basic insulation;2000 V AC between poles with basic insulation
Product Certifications: CE;CSA;Lloyd's;UL;GOST
Standards: CSA C22.2 No 14;UL 508;EN/IEC 61810-1
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
ambient air temperature for operation: -40…131 °F (-40…55 °C)
vibration resistance: 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation;5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
IP degree of protection: IP40 conforming to EN/IEC 60529
shock resistance: 10 gnin operation;30 gnnot operating
pollution degree: 2
Category: 21127-ZELIO ICE CUBE RELAYS
Discount Schedule: CP2
GTIN: 3389119403849
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 0.83 in (2.1 cm)
Package 1 Width: 1.06 in (2.7 cm)
Package 1 Length: 1.81 in (4.6 cm)
Package 1 Weight: 1.31 oz (37 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 1.18 in (3 cm)
Package 2 Width: 4.06 in (10.3 cm)
Package 2 Length: 4.92 in (12.5 cm)
Package 2 Weight: 13.83 oz (392 g)
Unit Type of Package 3: S02
Number of Units in Package 3: 240
Package 3 Height: 5.91 in (15 cm)
Package 3 Width: 11.81 in (30 cm)
Package 3 Length: 15.75 in (40 cm)
Package 3 Weight: 21.89 lb(US) (9.929 kg)
Warranty: 18 months
