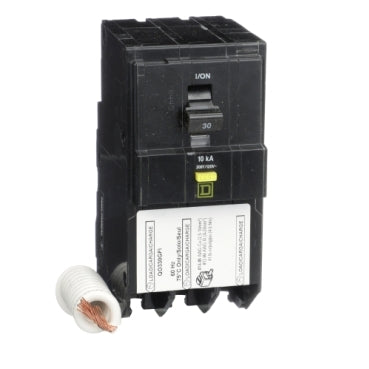

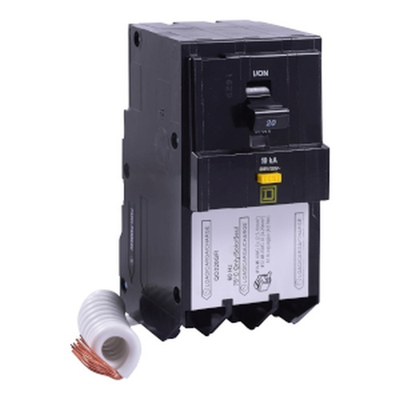

QO330GFI | MINIATURE CIRCUIT BREAKER, QO, 30 A, 3P, 208Y/120 V, 10 kA, Plug in, GFI | Square D by Schneider Electric

MINIATURE CIRCUIT BREAKER, QO, 30 A, 3P, 208Y/120 V, 10 kA, Plug in, GFI

MINIATURE CIRCUIT BREAKER

• Current Rating : 30 A
• Voltage Rating : 208Y/120 V AC
• Number of Poles : 3P
• Circuit Breaker Type : Ground fault protecting class B 30 mA
• Inturrupt Rating : 10 kA 208Y/120 V AC 50/60 Hz

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 208Y/120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
