HOM2200BB | MINIATURE CIRCUIT BREAKE | Square D

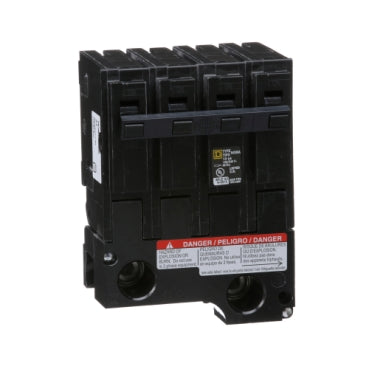

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HOM2200BB

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D HOM2200BB Documents

Datasheet

Overview

Details for HOM2200BB

MINIATURE CIRCUIT BREAKE

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 200A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 200 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 2P
Short Circuit Current Rating: 10 kA
Number of Spaces: 4
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Box lugs
Wire Size: AWG 4...300 kcmil aluminium/copper)1
tightening torque: 250.48 lbf.in (28.3 N.m) 0.15…0.23 in² (95…150 mm²) (AWG 4/0...250 kcmil)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00144-HOM BREAKERS 150-200A
Discount Schedule: DE3D
GTIN: 785901876601
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.80 in (14.732 cm)
Package 1 Width: 7.30 in (18.542 cm)
Package 1 Length: 8.00 in (20.32 cm)
Package 1 Weight: 3.06 lb(US) (1.388 kg)
Warranty: Lifetime
