Details for 2601AG2

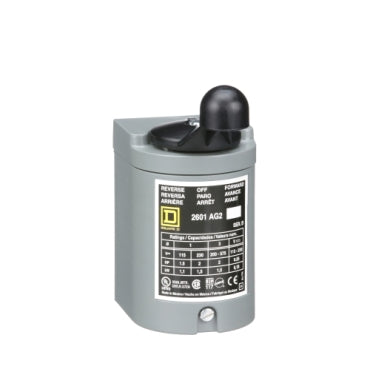

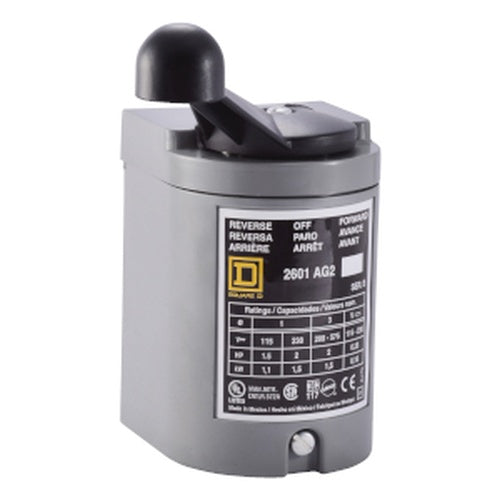

DRUM SWITCH 600VAC 2HP A +OPTION

DRUM SWITCH 600VAC 2HP A +OPTIONS

Horsepower : 2 hp 230 V AC,1.5 hp 115 V AC,2 hp 200 V AC,2 hp 460 V AC,2 hp 575 V AC,0.25 hp 115 V DC,0.25 hp 230 V DC
System Voltage : 250 V DC,600 V AC
Number of Poles : 3P
Electrical Connection : Screw-clamp terminals
Type : A

2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 1 general purpose enclosure. Drum switches are UL listed and CSA certified for global applications.

Specifications

Product: Reversing Drum Switch
Enclosure Rating: NEMA 1
Horsepower: 1.5 hp 115 V AC;1 phase;2 hp 230 V AC;1 phase;2 hp 200 V AC;3 phase;2 hp 230 V AC;3 phase;2 hp 460 V AC;3 phase;2 hp 575 V AC;3 phase;0.25 hp 115 V DC;0.25 hp 230 V DC
Maximum Rated Voltage: 600 V AC;250 V DC
Number of Poles: 3P
Certifications: UL Listed;CSA
Electrical Connection: Screw-clamp terminals
Type: A
Width: 2.68 in (68.07 mm)
Height: 5.38 in (136.65 mm)
Depth: 4.61 in (117.09 mm)
Product weight: 1.34 lb(US) (0.61 kg)
Category: 21116-2601
Discount Schedule: CP1
GTIN: 785901555414
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.69 in (11.9 cm)
Package 1 Width: 5.59 in (14.2 cm)
Package 1 Length: 7.01 in (17.8 cm)
Package 1 Weight: 20.00 oz (567.0 g)
Warranty: 18 months
