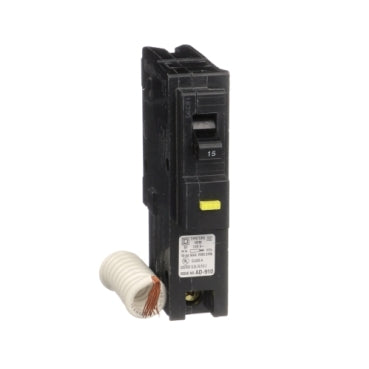

HOM115GFI | MINIATURE CIRCUIT BREAKER, 1P, 120V 15A | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM115GFI
Overview
Details for HOM115GFI
MINIATURE CIRCUIT BREAKER, 1P, 120V 15A
MINIATURE CIRCUIT BREAKER- Current Rating : 15 A
- Voltage Rating : 120 V AC
- Number of Poles : 1P
- Short Circuit Current Rating : 10 kA
- Circuit Breaker Type : Ground fault protecting class A 6 mA
Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 15 A
- Certifications
- UL Listed
- Voltage Rating
- 120 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 1
- Circuit Breaker Type
- Ground fault protecting class A 6 mA
- Ratings
- HACR rated
- Electrical Connection
- Screw clamp terminals
- Wire Size
- AWG 14...AWG 10 aluminium/copper)1
- tightening torque
- 36.29 lbf.in (4.1 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10)
- Height
- 3.13 in (79.50 mm)
- Width
- 1 in (25.40 mm)
- Depth
- 2.98 in (75.69 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00063-HOM 1 POLE GFI CB;20A MAX
- Discount Schedule
- DE3D
- GTIN
- 785901065364
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.90 in (9.91 cm)
- Package 1 Width
- 5.40 in (13.72 cm)
- Package 1 Length
- 1.30 in (3.3 cm)
- Package 1 Weight
- 9.60 oz (272.16 g)
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 38
- Package 2 Height
- 3.90 in (9.906 cm)
- Package 2 Width
- 13.90 in (35.306 cm)
- Package 2 Length
- 20.80 in (52.832 cm)
- Package 2 Weight
- 24.70 lb(US) (11.204 kg)
- Unit Type of Package 3
- PAL
- Number of Units in Package 3
- 1824
- Package 3 Height
- 40.00 in (101.6 cm)
- Package 3 Width
- 40.00 in (101.6 cm)
- Package 3 Length
- 48.00 in (121.92 cm)
- Package 3 Weight
- 1185.60 lb(US) (537.779 kg)
- Warranty
- Lifetime
