9001KYK317 | Harmony Complete Control Station, Surface Mount, Indoor/Outdoor, 3 Pushbuttons, 1 NO + 1 NC, 10A, Screw Clamp Terminals, NEMA 3, 4, 13 | Square D by Schneider Electric

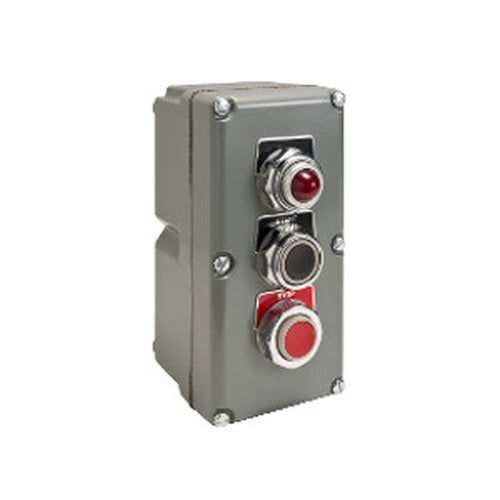

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KYK317

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 9001KYK317 Documents

Datasheet More Info

Overview

Details for 9001KYK317

Harmony Complete Control Station, Surface Mount, Indoor/Outdoor, 3 Pushbuttons, 1 NO + 1 NC, 10A, Screw Clamp Terminals, NEMA 3, 4, 13

Harmony Complete Control Station

Mounting: Surface mounting
Material: Die cast zinc alloy
Color: Gray
Type of Installation: Indoor/Outdoor
Control Station Composition: 3 push-buttons with 1 NO + 1 NC contacts START-STOP
Connections - Terminals: Screw-clamp terminals
Rated Operational Current: 10A
Degree of Protection: NEMA 3, 4, 13

The range of control station enclosures designed for HarmonyTM diameter 30 mm metal control and signalling units is the best solution for mounting control and signalling units. It is water, dust and oil tight and provides protection indoor and outdoor. The 9001KY range consists of die cast zinc enclosures with 1 to 16 cut-outs. Products can be supplied empty or equipped with pushbuttons and/or pilot lights. In the second case, to determine the environmental impacts, use this PEP and add the impacts described in the buttons and /or pilot lights PEP.
