MXG461B25-8 | Magnetic Valve, 1", 2-way or floating, 9.3 Cv, 0 to 10V control, w/ fittings | Siemens Building Technology

Siemens Building Technology | MXG461B25-8

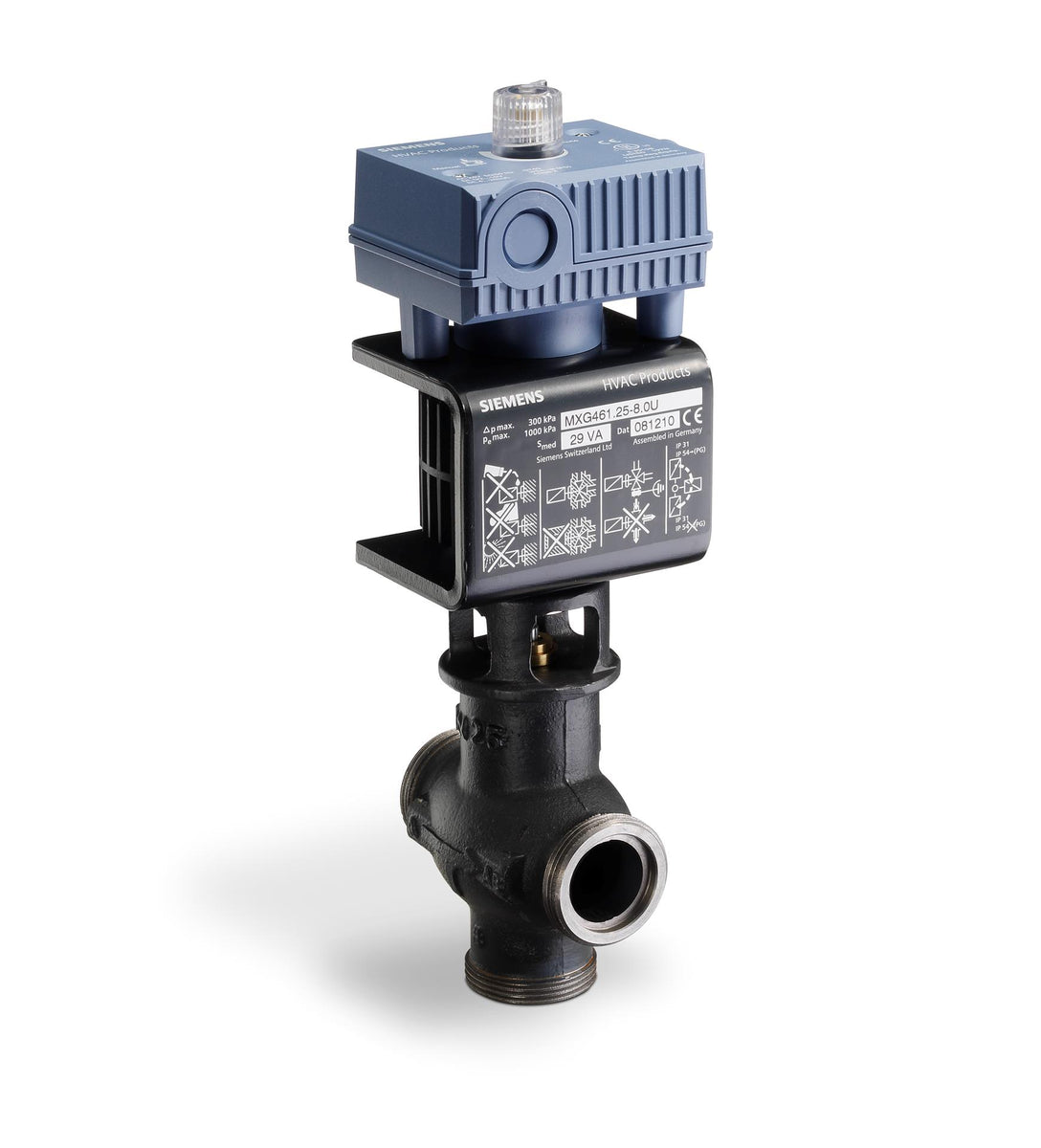

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B25-8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MXG461B25-8 Documents

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN15..25)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 25. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 25. 3D drawings. stp format) More Info

Overview

Details for MXG461B25-8

1" Magnetic Valve: Siemens MXG461B25-8Siemens MXG461B25-8 is a high-quality 1-inch magnetic valve designed for commercial and industrial applications. Crafted from red brass, it ensures durability and resistance to corrosion, making it suitable for demanding environments. Its innovative design offers precise control over fluid flow, ensuring efficiency and reliability in your operations. Key Features:â€¢ 1-inch diameter for compatibility with various piping systemsâ€¢ Red brass construction for enhanced durability and corrosion resistanceâ€¢ Magnetic operation for precise and responsive fluid controlâ€¢ Ideal for commercial and industrial applicationsShop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 700 kPa
Connecting thread: G 1½" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 1½ B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 700 kPa
Dimensions (W x H x D): 6.73 x 15.85 x 3.98 in
Product conformity: DVGW approved
k_vs: 8 m³/h
DN: 25
