M3FB15LX15/A | 0 to 10V 1/2"Valve, Hot Gas Bypass, 1.75 Cv, 460 PSI | Siemens Building Technology

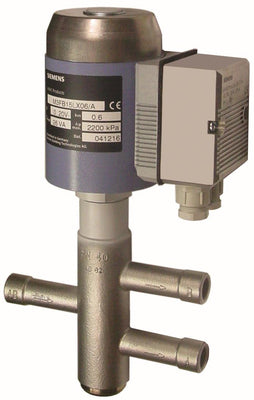

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB15LX15/A
Documents and manuals
Siemens Building Technology M3FB15LX15/A Documents
Datasheet(Modulating refrigerant valves‚ PS43. M3FB..LX..)Datasheet(M3FB…LX… Series Modulating Control Valve for Hot Gas Control Technical Instructions)Declaration of conformity(CE declaration M3FB..)Declaration of conformity(Test report EN 10204 (type 2.2). M3FB..LX..)Declaration of conformity(UKCA Conformity Declaration Electromagnetic valve actuators M3FB..)Mounting instruction(Modulating refrigerant valves with magnetic actuator‚ PS43. M3FB..LX..) More Info
Overview
Details for M3FB15LX15/A
M3FB15LX15/A 5/8" 1.75cv HotGasBypass from Siemens Building Technology is engineered to provide precise and efficient temperature control for commercial heating and cooling systems. Its advanced design, durability, and reliability make it the top choice for industrial engineers and maintenance professionals.Constructed with high-quality materials, this hot gas bypass valve features a durable brass body and stainless steel internal components, ensuring longevity and resistance to corrosion. Its compact size and lightweight design allow for easy installation in tight spaces, making it suitable for various applications.The M3FB15LX15/A valve operates on a wide voltage range, providing versatility and compatibility with different electrical systems. It utilizes advanced technology to precisely control the flow of hot gas, optimizing energy efficiency and maintaining desired temperatures.This Siemens Building Technology valve is engineered with innovative features such as a pressure relief valve and a manual override for enhanced safety and control. Its low maintenance design minimizes downtime and ensures uninterrupted operation.Shop now at our HVAC supply store for the best prices and fast shipping on M3FB15LX15/A 5/8" 1.75cv HotGasBypass from Siemens Building Technology. Trust our commitment to providing high-quality products and exceptional customer service for all your industrial needs.
Specifications
- Power consumption
- 26 VA
- Stroke resolution ΔH/H100
- 1:200
- Material, valve body
- Steel
- Ambient temperature, operation
- -40…50 °C
- Degree of protection
- IP54
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- Steel
- Medium temperature
- -40…120 °C; -40…248 ºF
- Mounting position
- Any
- Nominal pressure
- PN 32
- Operating voltage
- 24 VAC
- Permissible operating pressure
- 4300 kPa
- Positioning signal
- DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 1 s
- Spring return function
- AB-> A closed
- Valve characteristic
- Linear
- Δpmax
- 2200 kPa
- Dimensions (W x H x D)
- 6.3 x 10.79 x 3.23 in
- kvs
- 1.5 m³/h
- DN
- 15
