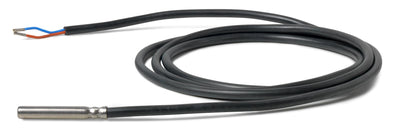

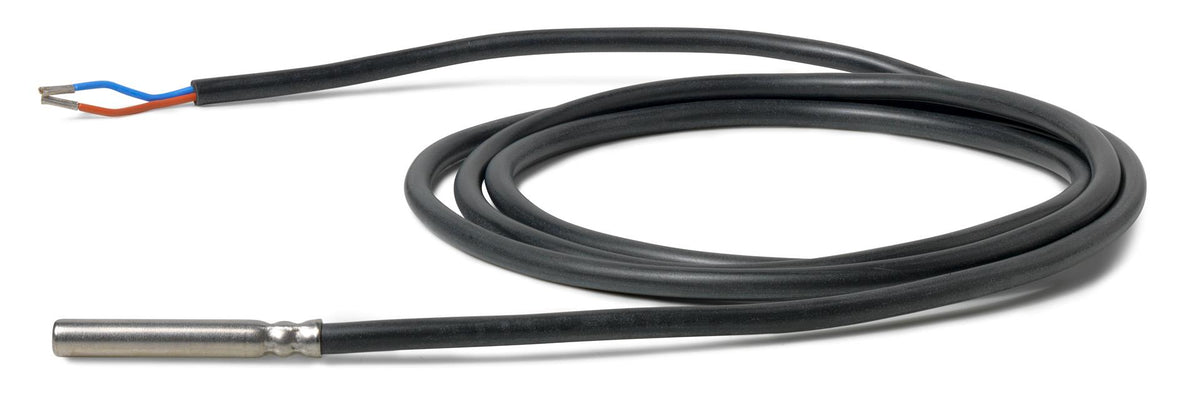

QAP2012.150 | Cable Temperature Sensor, Platinum 1K Ohm (385 Alpha) | Siemens Building Technology
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QAP2012.150
Documents and manuals
Siemens Building Technology QAP2012.150 Documents
Datasheet(Cable temperature sensor QAP22)Datasheet(Surface Mount Temperature Sensors Technical Specification Sheet)Declaration of conformity(EU Declaration of Conformity QAxxx (passive senors))Declaration of conformity(UKCA Declaration of Conformity Passive temperature sensors QAxxx)Declaration of conformity(Test report MTBF for QA..)Environmental Declaration(Sensors. passive QA... FGT-PT1000)Mounting instruction(Cable temperature sensor / Kabeltemperaturfühler QAP..)Other datasheet(Cable temperature sensor QAP21.2) More Info
Overview
Details for QAP2012.150
Siemens Building Technology QAP2012.150 Cable Temperature Sensor: A Reliable and Precise Temperature Monitoring Solution
Siemens Building Technology's QAP2012.150 Cable Temperature Sensor is a reliable and accurate temperature monitoring device designed for industrial applications. With its 5' cable length and PT 1K resistance, this sensor provides precise temperature readings in a wide range of environments.
Crafted with durability in mind, the QAP2012.150 is designed to withstand harsh industrial conditions. Its robust construction ensures reliable operation even in demanding environments.
Key Features:
* Accurate temperature sensing with PT 1K resistance
* Compact design for easy installation and monitoring
* 5' cable length for extended reach
* Rugged construction for durability in industrial settings
Applications:
* Monitoring temperature of pipes, tanks, and equipment
* HVAC systems
* Industrial automation
* Process control systems
Elevate your temperature monitoring capabilities with the Siemens Building Technology QAP2012.150 Cable Temperature Sensor. Trust the experts at our HVAC supply store for the best prices and the fastest shipping in the industry. Order now and experience the precision and reliability of this exceptional temperature sensor.
Specifications
- Material, protection pocket
- Stainless steel
- Protection pocket
- 40.5 mm; 6 mm
- Type of fixing
- Cable tie or with accessories
- Analog outputs
- Pt RTD, 1k Ohm, 385a
- Measuring range
- -22 to 266 °F
- Sensor
- RTD with 5 foot cable
- Measuring range, temperature
- -30…130 °C
- Sensing element, temperature
- Pt1000
- Sensing element
- Pt1000
- Measurement accuracy
- +/-0.72°F @ 32 °F
- Time constant
- Without protection pocket: 20 s
- Material, protection pocket
- Stainless steel
- Connection cable
- Silicone
- Cable length
- 1.5 m
