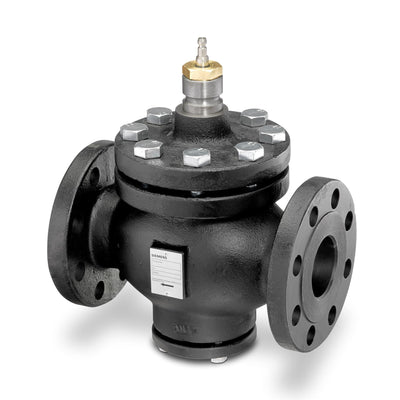

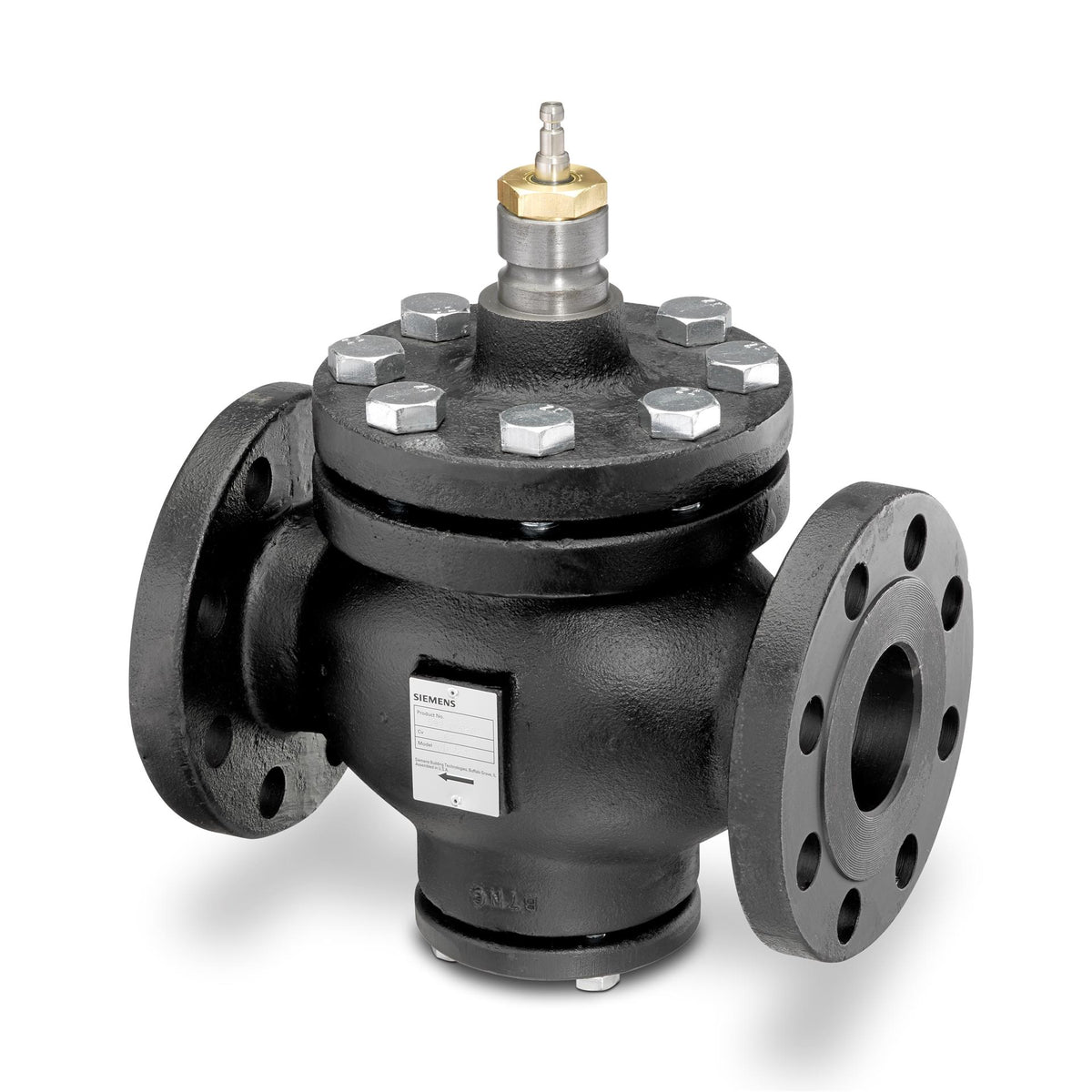

599-06616 | Flowrite two-way 3-inch high close-off valve. ANSI 125, NC, SS trim. | Siemens Building Technology

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06616

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology 599-06616 Documents

Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06616

Siemens Building Technology 3" N/C Flg125#SStrim HCO 100cv (599-06616) Siemens Building Technology's 599-06616 is a 3" N/C Flg125#SStrim HCO with a capacity of 100 cv. This product is part of the Siemens Building Technology family of high-quality HVAC products. Features and Benefits: - 3" flange size - N/C (normally closed) operation - Flg125#SStrim construction - HCO (high capacity) design - 100 cv capacity Applications: The Siemens Building Technology 599-06616 is ideal for use in a variety of HVAC applications, including: - Commercial buildings - Industrial facilities - Institutional buildings Shop now at our HVAC supply store for the best prices and fast shipping on all your HVAC needs!

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 80
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 20 mm, 0.75 " mm
Stroke, mm: 20 mm
Dimensions (W x H x D): 11.77 x 15.31 x 7.52 in
