MXG461B15-1.5 | Magnetic, 1/2" Valve 2-way or floating, 1.8 Cv, 0 to 10V control, w/ fittings | Siemens Building Technology

Siemens Building Technology | MXG461B15-1.5

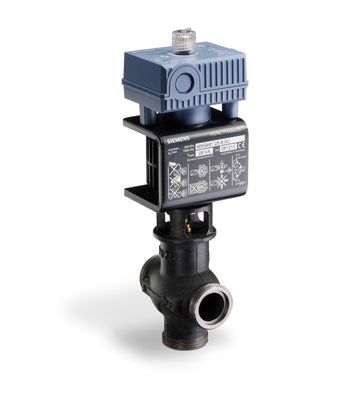

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B15-1.5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MXG461B15-1.5 Documents

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN15..25)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 15. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 15. 3D drawings. stp format) More Info

Overview

Details for MXG461B15-1.5

1/2" 1.8Cv BRASS BDY MAG VALVE: The MXG461B15-1.5 from Siemens Building Technology is a 1/2" 1.8Cv brass body solenoid valve. It is designed for use in commercial and industrial applications, including HVAC systems, plumbing systems, and process control systems. The valve is constructed of durable brass for long-lasting performance and has a Cv rating of 1.8 for high flow capacity. It operates on a 120 VAC power supply and has a maximum pressure rating of 150 psi. The valve is normally closed and has a manual override lever. It is also equipped with a built-in strainer to prevent debris from entering the valve. Shop our HVAC supply store today for the best prices and fast shipping on all your Siemens Building Technology products!

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 1000 kPa
Connecting thread: G 1" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 1 B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Dimensions (W x H x D): 6.18 x 15.06 x 3.98 in
Product conformity: DVGW approved
k_vs: 1.5 m³/h
DN: 15
