MVF461H50-30 | Magnetic Valve, 2", 2-way, 35 Cv, 0 to 10V control, w/o Flange Kits | Siemens Building Technology

Siemens Building Technology | MVF461H50-30

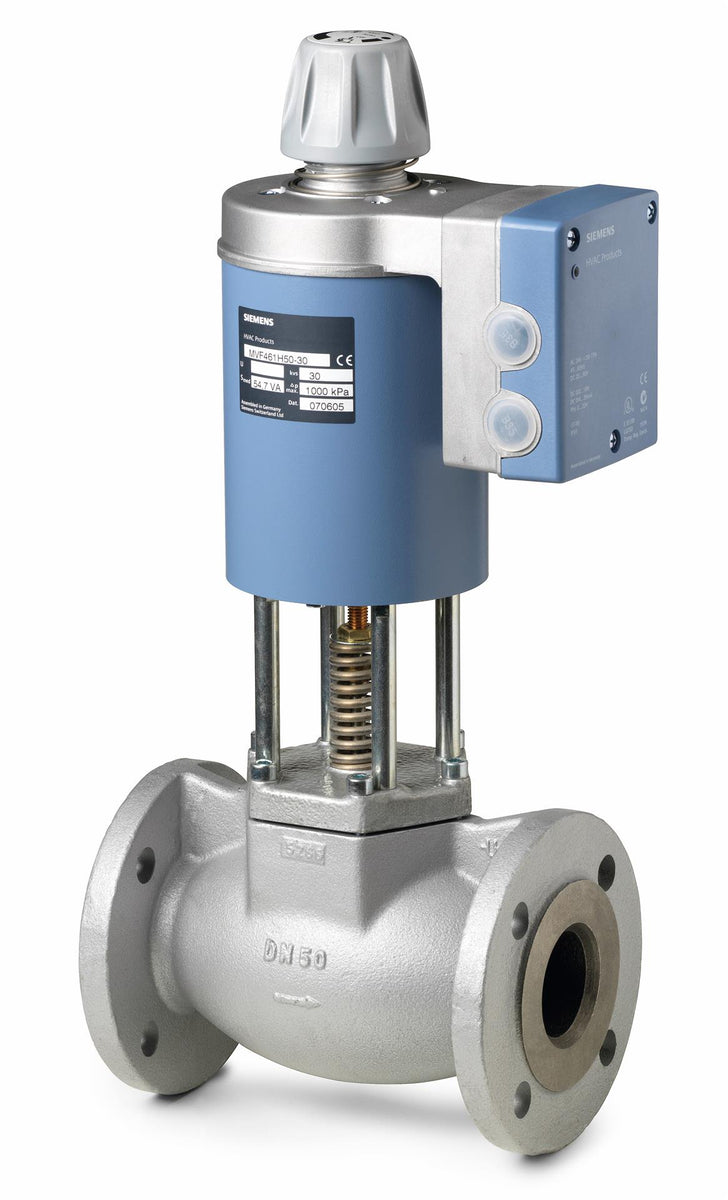

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVF461H50-30

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MVF461H50-30 Documents

Datasheet(Modulating control valves. PN16. MVF461H..)Datasheet(MVF461H Series Modulating Control Valves with Magnetic. Positioning Control and Position Feedback for Hot Water and Steam Technical Instructions)Declaration of conformity(CE declaration MVF461H..)Declaration of conformity(RCM Supplier's Declarationof conformity MVF461H…)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators MVF461H..)Environmental Declaration(Modulationg control valves. PN16. . MVF461H..)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Dimension Drawings(2-port valve. MVF461H... DN 50. 2D drawings. dxf/dwg format)Dimension Drawings(2-port valve. MVF461H... DN 50. 3D drawings. dwg format)Dimension Drawings(2-port valve. MVF461H... DN 50. 3D drawings. stp format) More Info

Overview

Details for MVF461H50-30

MAG VALVE 2", CV 35.1, STEAM [MVF461H50-30] by Siemens Building Technology The MVF461H50-30 is a 2-inch solenoid valve with a CV value of 35.1, designed for controlling steam flow in industrial applications. It features a durable brass body and stainless steel trim for superior corrosion resistance, ensuring reliable performance in harsh environments. The valve is actuated by a solenoid coil that provides fast and precise operation, making it ideal for automated control systems. It has a normally closed configuration, preventing steam flow when the coil is not energized. The Cv value of 35.1 indicates that the valve can handle a flow rate of 35.1 gallons per minute of water at a 1-psi pressure drop. The MVF461H50-30 is commonly used in steam distribution systems, boilers, and heat exchangers. It provides efficient and reliable control of steam flow, contributing to energy savings and improving system performance. Shop our HVAC supply store today for the best prices and fast shipping on the MVF461H50-30 MAG VALVE 2", CV 35.1, STEAM from Siemens Building Technology!

Specifications

Ambient temperature, operation: -5…45 °C
Degree of protection: IP31
k_vs: 30 m³/h
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Nodular cast iron EN-GJS-400-18-LT
Medium temperature: 1…180 °C; 34…356 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 24 VDC
Permissible operating pressure: Liquid, max: 1300 kPa; Steam, max: 900 kPa
Position feedback: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 65 VA
Spring return function: A-> AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Δp_s: 1000 kPa
Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Absolute pressure p1 steam: 900 kPa abs
Medium: Steam , Water , Saturated steam
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Cast iron EN-GJS-400-18-LT
Dimensions (W x H x D): 10 x 20.93 x 6.5 in
DN: 50
