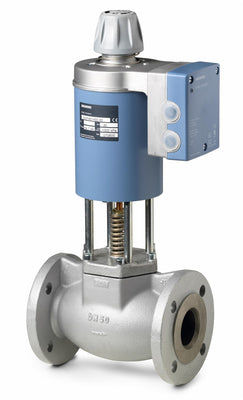

MVF461H25-8 | Magnetic Valve, 1", 2-way, 9.4 Cv, 0 to 10V control, w/o Flange Kits | Siemens Building Technology

Siemens Building Technology | MVF461H25-8

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVF461H25-8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MVF461H25-8 Documents

Datasheet(Modulating control valves. PN16. MVF461H..)Datasheet(MVF461H Series Modulating Control Valves with Magnetic. Positioning Control and Position Feedback for Hot Water and Steam Technical Instructions)Declaration of conformity(CE declaration MVF461H..)Declaration of conformity(RCM Supplier's Declarationof conformity MVF461H…)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators MVF461H..)Environmental Declaration(Modulationg control valves. PN16. . MVF461H..)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Dimension Drawings(2-port valve. MVF461H... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2-port valve. MVF461H... DN 25. 3D drawings. dwg format)Dimension Drawings(2-port valve. MVF461H... DN 25. 3D drawings. stp format) More Info

Overview

Details for MVF461H25-8

1" MAG STEAM VLV 9.4cvISO FLGD: Siemens Building Technology MVF461H25-8 The Siemens Building Technology MVF461H25-8 is a 1" Magnetic Steam Valve with 9.4 Cv and ISO Flanged. Designed for industrial and commercial applications, this valve provides reliable control and efficient performance in steam systems. Constructed with durable materials and advanced technology, it ensures long-lasting operation and minimal maintenance. Key Features: - 1" size, suitable for various steam system applications - 9.4 Cv capacity, ensuring efficient flow control - ISO Flanged design for secure and leak-proof connections - Magnetic operation for precise and responsive valve actuation - Suitable for steam systems, providing effective control and reliability - Durable construction, ensuring longevity and reliability Benefits: - Precise flow control and regulation for optimal system performance - Leak-proof connections guarantee system integrity - Quick and responsive actuation enables precise steam flow adjustment - Compatible with steam systems, meeting industry requirements - Long service life minimizes maintenance and replacement costs Applications: - Industrial steam systems - Commercial steam systems - Process control systems - HVAC systems - Sterilization and sanitation systems Choose Siemens Building Technology MVF461H25-8 for your steam system needs. Our HVAC supply store offers competitive prices and fast shipping, ensuring you get the best value and timely delivery.

Specifications

Ambient temperature, operation: -5…45 °C
Degree of protection: IP31
k_vs: 8 m³/h
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Nodular cast iron EN-GJS-400-18-LT
Medium temperature: 1…180 °C; 34…356 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 24 VDC
Permissible operating pressure: Liquid, max: 1300 kPa; Steam, max: 900 kPa
Position feedback: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A-> AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Δp_s: 1000 kPa
Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Absolute pressure p1 steam: 900 kPa abs
Medium: Steam , Water , Saturated steam
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Cast iron EN-GJS-400-18-LT
Dimensions (W x H x D): 7.72 x 15.89 x 4.53 in
DN: 25
