Brand: Siemens Building TechnologySKU: MVF461H20-5

List Price
~~$3,996.60~~

$2,038.27

Availability: IN STOCK

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

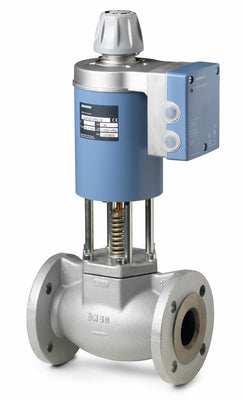

MVF461H20-5 | Magnetic Valve, 3/4", 2-way, 5.9 Cv, 0 to 10V control, w/o Flange Kits | Siemens Building Technology

Siemens Building Technology | MVF461H20-5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVF461H20-5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MVF461H20-5 Documents

Datasheet(Modulating control valves. PN16. MVF461H..)Datasheet(MVF461H Series Modulating Control Valves with Magnetic. Positioning Control and Position Feedback for Hot Water and Steam Technical Instructions)Declaration of conformity(CE declaration MVF461H..)Declaration of conformity(RCM Supplier's Declarationof conformity MVF461H…)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators MVF461H..)Environmental Declaration(Modulationg control valves. PN16. . MVF461H..)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Dimension Drawings(2-port valve. MVF461H... DN 32. 2D drawings. dxf/dwg format)Dimension Drawings(2-port valve. MVF461H... DN 20. 3D drawings. dwg format)Dimension Drawings(2-port valve. MVF461H... DN 20. 3D drawings. stp format) More Info

Overview

Details for MVF461H20-5

MAG VALVE 3/4",CV5.9 STEAM The Siemens Building Technology MAG VALVE, model MVF461H20-5, is a crucial component for regulating steam flow in various industrial applications. It is designed with a 3/4" port size and provides a flow coefficient (Cv) of 5.9, delivering precise control over steam flow. The MAG VALVE is crafted from durable materials to withstand demanding operating conditions and ensure longevity. Its compact design and ease of installation make it an ideal solution for space-constrained areas. Applications: The Siemens Building Technology MAG VALVE finds applications in a wide range of industrial settings, including: Steam distribution systems HVAC systems Industrial processes Power generation plants Benefits: Precise flow control: The valve's Cv of 5.9 allows for accurate regulation of steam flow, ensuring optimal system performance and energy efficiency. Durable construction: Its robust design and high-quality materials guarantee reliable operation in harsh environments. Compact design: The valve's compact footprint simplifies installation and saves valuable space in crowded control panels. Easy installation: The user-friendly design facilitates quick and hassle-free installation, minimizing downtime during maintenance or upgrades. Our HVAC supply store - We offer the best prices and fast shipping for your products!

Specifications

Ambient temperature, operation: -5…45 °C
Degree of protection: IP31
k_vs: 5 m³/h
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Nodular cast iron EN-GJS-400-18-LT
Medium temperature: 1…180 °C; 34…356 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 24 VDC
Permissible operating pressure: Liquid, max: 1300 kPa; Steam, max: 900 kPa
Position feedback: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A-> AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Δp_s: 1000 kPa
Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Absolute pressure p1 steam: 900 kPa abs
Medium: Steam , Water , Saturated steam
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Cast iron EN-GJS-400-18-LT
Dimensions (W x H x D): 7.52 x 15.41 x 4.13 in
DN: 20
