M3FB20LX/A | 0 to 10V 3/4"Valve, Hot Gas Bypass, 5.8 Cv, 460 PSI | Siemens Building Technology

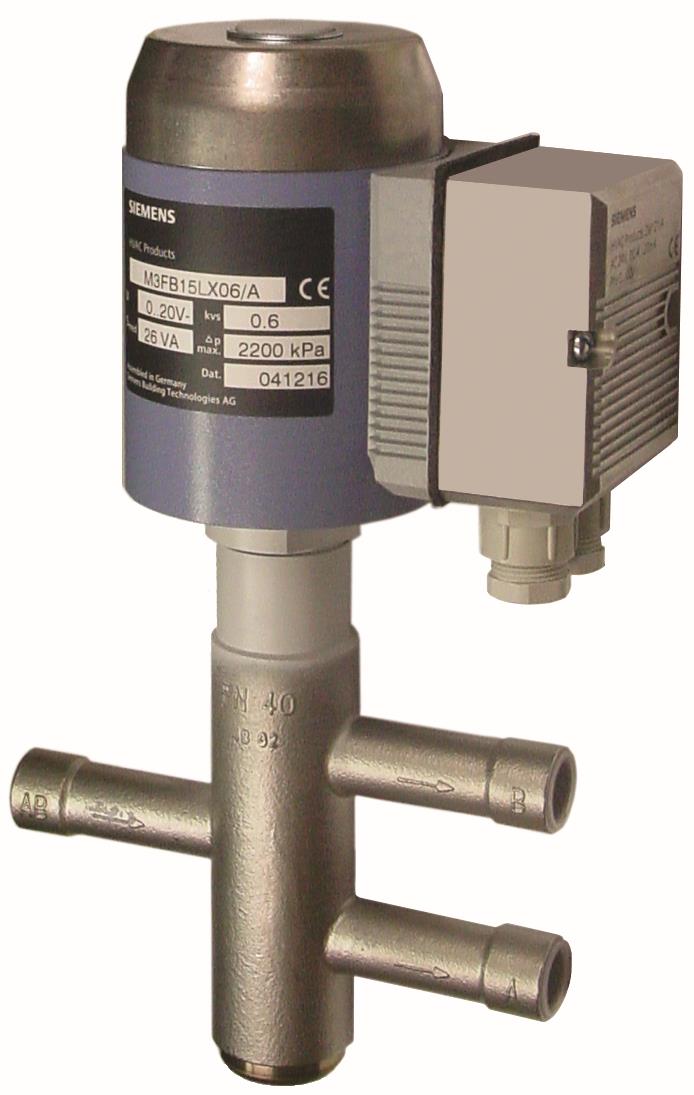

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB20LX/A
Documents and manuals
Siemens Building Technology M3FB20LX/A Documents
Datasheet(Modulating refrigerant valves‚ PS43. M3FB..LX..)Datasheet(M3FB…LX… Series Modulating Control Valve for Hot Gas Control Technical Instructions)Declaration of conformity(CE declaration M3FB..)Declaration of conformity(Test report EN 10204 (type 2.2). M3FB..LX..)Declaration of conformity(UKCA Conformity Declaration Electromagnetic valve actuators M3FB..)Mounting instruction(Modulating refrigerant valves with magnetic actuator‚ PS43. M3FB..LX..) More Info
Overview
Details for M3FB20LX/A
7/8" Hot Gas Bypass for HVAC Systems: Siemens Building Technology M3FB20LX/AThis Siemens Building Technology 7/8" Hot Gas Bypass (M3FB20LX/A) is a vital component for maintaining optimal performance in HVAC systems. Constructed with high-quality materials, this bypass ensures efficient and reliable operation. Its 5.0cv capacity and 24V operation make it suitable for a wide range of HVAC applications.
Key Features:
7/8" diameter for precise flow control
5.0cv capacity for handling higher flow rates
24V operation for compatibility with various HVAC systems
Durable construction for long-lasting performance
This Hot Gas Bypass is designed to redirect excess hot gas back to the compressor, preventing overheating and maintaining system efficiency. It plays a crucial role in extending the life of your HVAC system and reducing energy consumption.
Whether you're a professional engineer or maintenance expert, this Siemens Building Technology 7/8" Hot Gas Bypass is an essential component for your HVAC system. Our HVAC supply store offers this product at competitive prices with fast shipping. Contact us today to place your order and ensure optimal performance for your HVAC system!
Specifications
- Power consumption
- 26 VA
- Stroke resolution ΔH/H100
- 1:200
- Material, valve body
- Steel
- Ambient temperature, operation
- -40…50 °C
- Degree of protection
- IP54
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- Steel
- Medium temperature
- -40…120 °C; -40…248 ºF
- Mounting position
- Any
- Nominal pressure
- PN 32
- Operating voltage
- 24 VAC
- Permissible operating pressure
- 4300 kPa
- Positioning signal
- DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 1 s
- Spring return function
- AB-> A closed
- Valve characteristic
- Linear
- Δpmax
- 1800 kPa
- Dimensions (W x H x D)
- 7.09 x 13.27 x 4.02 in
- kvs
- 5 m³/h
- DN
- 20
