M3FB15LX06/A | 0 to 10V, 1/2" Valve, Hot Gas Bypass, 0.7 Cv, 460 PSI | Siemens Building Technology

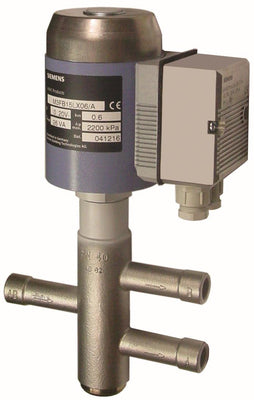

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB15LX06/A
Documents and manuals
Siemens Building Technology M3FB15LX06/A Documents
Datasheet(Modulating refrigerant valves‚ PS43. M3FB..LX..)Datasheet(M3FB…LX… Series Modulating Control Valve for Hot Gas Control Technical Instructions)Declaration of conformity(CE declaration M3FB..)Declaration of conformity(Test report EN 10204 (type 2.2). M3FB..LX..)Declaration of conformity(UKCA Conformity Declaration Electromagnetic valve actuators M3FB..)Mounting instruction(Modulating refrigerant valves with magnetic actuator‚ PS43. M3FB..LX..) More Info
Overview
Details for M3FB15LX06/A
5/8" Gas Bypass Valve Assembly by Siemens Building Technology (M3FB15LX06/A)
This gas bypass valve assembly effectively isolates gas flow in HVAC systems for maintenance, repairs, and upgrades. Designed with precision, this assembly features a 5/8" diameter and is crafted using durable materials to withstand the rigors of industrial applications. Its high-quality construction ensures reliable performance and a long service life. Additionally, this gas bypass valve assembly is easy to install and maintain, minimizing downtime during maintenance procedures.
Industries and professionals that rely on gas-powered HVAC systems will find this 5/8" Gas Bypass Valve Assembly indispensable. It provides a safe and efficient way to isolate gas flow, enabling safe and efficient maintenance, and repairs. By integrating this assembly into your HVAC system, you can improve operational efficiency, reduce downtime, and enhance the overall reliability of your equipment.
Get the best prices and fast shipping on this and other HVAC products at our HVAC supply store. As a leading supplier of industrial equipment, we offer a wide selection of high-quality products to meet your specific needs. Our commitment to customer satisfaction and technical expertise ensures that you receive the best solutions for your industrial applications.
Specifications
- Power consumption
- 26 VA
- Stroke resolution ΔH/H100
- 1:200
- Material, valve body
- Steel
- Ambient temperature, operation
- -40…50 °C
- Degree of protection
- IP54
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- Steel
- Medium temperature
- -40…120 °C; -40…248 ºF
- Mounting position
- Any
- Nominal pressure
- PN 32
- Operating voltage
- 24 VAC
- Permissible operating pressure
- 4300 kPa
- Positioning signal
- DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 1 s
- Spring return function
- AB-> A closed
- Valve characteristic
- Linear
- Δpmax
- 2200 kPa
- Dimensions (W x H x D)
- 6.3 x 10.79 x 3.23 in
- kvs
- 0.6 m³/h
- DN
- 15
