LX1D6F7 | TeSys Deca - contactor coil - LX1D6 - 110 V AC 50/60 Hz for 80 & 95 A contactor | SQUARE D

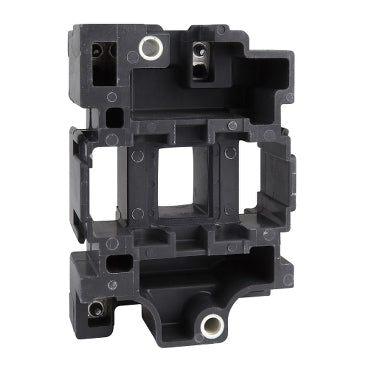

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LX1D6F7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D LX1D6F7 Documents

More Info

Overview

Details for LX1D6F7

LX1D6F7 Contactor Coil by Square D The LX1D6F7 Contactor Coil by Square D is a vital component in electrical control systems, designed to energize contactors. It operates at 110V and is a reliable solution for industrial applications where precise control of electrical circuits is crucial. Key Features: * 110V operation voltage * Compatible with Square D contactors * Durable construction for extended lifespan Applications: * Electrical control systems * Industrial automation * HVAC systems * Motor control With its robust design and reliable performance, the LX1D6F7 Contactor Coil is an essential component for maintaining efficient and safe electrical operations. Our HVAC supply store offers the best prices and fast shipping for your industrial products. Shop now and elevate your electrical control systems with our exceptional products and service! TeSys D replacement AC coil 110V 50/60Hz for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
Product or Component Type: Contactor coil
Device short name: LX1D6
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 110 V AC 50/60 Hz
average resistance: 26 Ohm 68 °F (20 °C)
Inductance of closed circuit: 1.7 H
Product Compatibility: LC1D40, LC1D50, LC1D65...D95
Mechanical durability: 4 Mcycles
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
Coil technology: Without built-in suppressor module
control circuit voltage limits: Drop-out 0.3...0.6 Uc 50/60 Hz 131 °F (55 °C)), Operational 0.8...1.1 Uc 50 Hz 131 °F (55 °C)), Operational 0.85...1.1 Uc 60 Hz 131 °F (55 °C))
inrush power in VA: 245 VA 60 Hz 0.75 68 °F (20 °C)), 245 VA 50 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 26 VA 60 Hz 0.3 68 °F (20 °C)), 26 VA 50 Hz 0.3 68 °F (20 °C))
heat dissipation: 6…10 W 50/60 Hz
Ambient Air Temperature for Operation: 23…140 °F (-5…60 °C)
Net Weight: 0.62 lb(US) (0.28 kg)
Category: 22341-CONTACTOR,D,K,&F ACCESS
Discount Schedule: I12
GTIN: 3389110233377
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7 cm)
Package 1 Width: 3.15 in (8 cm)
Package 1 Length: 6.30 in (16 cm)
Package 1 Weight: 11.11 oz (315 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 16
Package 2 Height: 11.81 in (30 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 12.09 lb(US) (5.482 kg)
Warranty: 18 months
