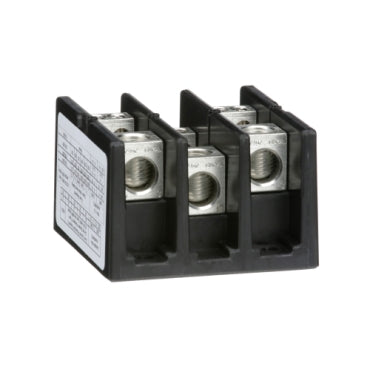

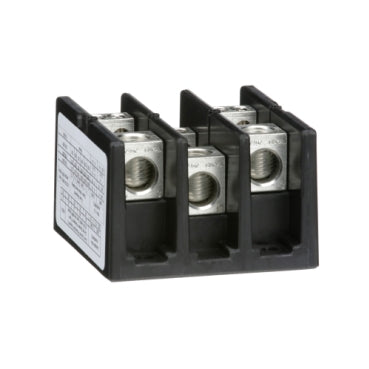

9080LBA362104 | Power distribution block, Linergy, 3 pole, 1 line, 4 load, 175A CU, 135A AL, 600 V | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9080LBA362104

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9080LBA362104 Documents

More Info

Overview

Details for 9080LBA362104

Introducing the NCO-9080LBA362104 Power Distributor Block from SQUARE D, the ultimate solution for efficient power distribution. Crafted with high-quality components, this block ensures reliable performance and durability. The NCO-9080LBA362104 is designed to provide a centralized point for distributing power to multiple electrical circuits, making it an ideal choice for industrial and commercial applications. Its compact size and robust construction allow for easy installation and integration into existing electrical systems. Key Features: - Multiple circuit connectivity for efficient power distribution - Durable construction for long-lasting performance - Compact design for space optimization - Easy installation and maintenance Applications: - Industrial machinery and equipment - Commercial buildings and facilities - Electrical panels and distribution systems Upgrade your power distribution system with the NCO-9080LBA362104 Power Distributor Block from SQUARE D. Our HVAC supply store offers competitive prices and fast shipping, ensuring your business has the electrical components it needs when you need them. Contact us today to learn more and place your order! Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Specifications

Range: 9080LB
Product: Power Distribution Block
Current Rating: 175 A copper;135 A aluminium
Short Circuit Current Rating: 65 kA
Voltage Rating: 600 V AC/DC
Mounting Type: Surface mount
number of poles: 3
Terminals per Pole: 1 line;4 load
Wire Size: Line 4;AWG 14...AWG 2/0;copper or aluminium;Load 2;AWG 14...AWG 4;copper or aluminium
Electrical Connection: Tin plated aluminium lugs
SCCR: 100 kA UL 508 A
Ambient air temperature for operation: -40…302 °F (-40…150 °C)
Block Material: Phenolic block
Terminal Tightening Torque: Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 12...AWG 10 copper or aluminium;Line lug 35 lbf.in (3.95 N.m) AWG 14 copper;Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium;Load lug 120 lbf.in (13.56 N.m) AWG 14...AWG 4 copper
wire stripping length: Line 0.5 in (12.70 mm);Load 0.44 in (11.18 mm) top;Load 0.75 in (19.05 mm) bottom
Height: 2.88 in (73.15 mm)
Width: 1.94 in (49.28 mm)
Depth: 1.78 in (45.21 mm)
End Barrier: 9080LB23
Net Weight: 0.49 lb(US) (0.22 kg)
Certifications: CSA file 70361 class 6228 01;UL recognized E60616 CCN XCFR2;CE
Category: 21711-9080 LB
Discount Schedule: CP1
GTIN: 785901097457
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.70 in (4.318 cm)
Package 1 Width: 2.70 in (6.858 cm)
Package 1 Length: 2.80 in (7.112 cm)
Package 1 Weight: 7.84 oz (222.26 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 24
Package 2 Height: 7.50 in (19.05 cm)
Package 2 Width: 6.40 in (16.256 cm)
Package 2 Length: 12.20 in (30.988 cm)
Package 2 Weight: 12.67 lb(US) (5.747 kg)
Unit Type of Package 3: BB1
Number of Units in Package 3: 4
Package 3 Height: 2.20 in (5.588 cm)
Package 3 Width: 5.90 in (14.986 cm)
Package 3 Length: 6.10 in (15.494 cm)
Package 3 Weight: 32.80 oz (929.864 g)
Warranty: 18 months
