9038CG36N4LZ20 | Float Switch: 575 VAC 1HP Type C + Options | SQUARE D

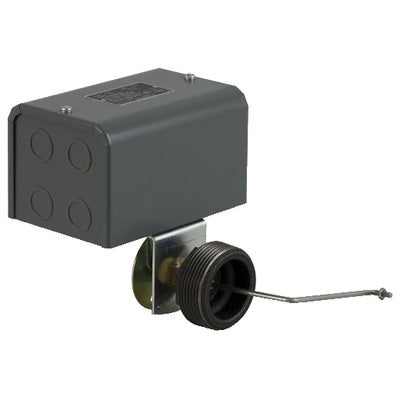

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG36N4LZ20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9038CG36N4LZ20 Documents

Datasheet More Info

Overview

Details for 9038CG36N4LZ20

MechAlternatorLessFloat- 2 Lvl: The Square D 9038CG36N4LZ20 is a compact and efficient device designed for industrial applications where maintaining a stable AC output voltage is crucial. It features a two-level voltage regulation system that ensures precise voltage control, preventing fluctuations that can damage sensitive equipment. This device operates on a single-phase input power supply and provides a regulated AC output voltage with low harmonic distortion. Its compact design makes it suitable for confined spaces, while its rugged construction ensures reliable performance in demanding environments. The Square D 9038CG36N4LZ20 is ideal for powering sensitive electronic equipment, industrial machinery, and other applications requiring a stable and reliable AC voltage supply. Its high efficiency and low energy consumption contribute to reduced operating costs. We offer the best prices and fast shipping for your products at our HVAC supply store. Contact us now to learn more about the Square D 9038CG36N4LZ20 and other industrial power products.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4.75...9.25 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainless steel 316
Viton
Stainlesss steel 304
Cast iron
Yellow brass
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 3.63 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Omit float, two-level non-alternating unit
kit composition: Float
Rod
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.9 cm
Package 1 Width: 27.9 cm
Package 1 Length: 31.0 cm
Package 1 Weight: 3.59 kg
Warranty: 18 months
