9038CG36 | Float Switch: 575 VAC 1HP Type C + Options | SQUARE D

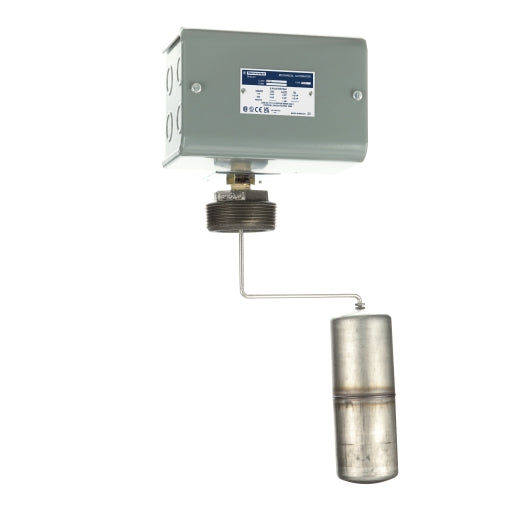

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG36

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9038CG36 Documents

Datasheet More Info

Overview

Details for 9038CG36

SQUARE D Float Switch (9038CG36) The Square D 9038CG36 float switch is a highly effective liquid level control device, engineered for use in various industrial and commercial applications. It features a robust construction, ensuring reliable operation and long-lasting durability. - Monitors liquid levels with precision and accuracy - Versatile design for use in a wide range of applications, including pumping systems, tanks, and reservoirs - Durable construction withstands harsh industrial environments - Easy to install and maintain, reducing downtime and maintenance costs - Meets industry standards for quality and safety Trust our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4.75...9.25 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Stainlesss steel 304
Stainless steel 316
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 3.93 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Float switch
Rod
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.876 cm
Package 1 Width: 28.194 cm
Package 1 Length: 30.988 cm
Package 1 Weight: 3.933 kg
Warranty: 18 months
