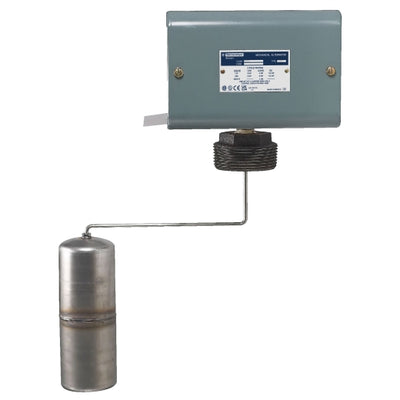

Details for 9038CG34Z20

575V Float Switch (9038CG34Z20) by SQUARE D: SQUARE D's 9038CG34Z20 is a rugged 575-volt float switch engineered for reliable liquid level monitoring and control in demanding industrial applications. Its robust construction and versatile design make it an ideal choice for various industries, including water and wastewater treatment, chemical processing, and manufacturing. The float switch features a durable float housing and a rugged, corrosion-resistant armored cable, ensuring longevity and dependability in harsh environments. Its precision-engineered switch mechanism provides accurate and consistent level detection, ensuring efficient and reliable operation. Key Features: - 575-volt operation for compatibility with higher voltage systems - Float housing for added durability and protection against external impacts - Armored cable for resistance against wear, tear, and corrosion - Precision-engineered switch mechanism for accurate level detection Applications: - Liquid level control and monitoring in tanks, reservoirs, and sumps - Pump control for automatic filling and emptying of tanks - High or low level alarms for process automation - Liquid level indication and monitoring in industrial processes Shop now at our HVAC supply store for the best prices and fast shipping on the 9038CG34Z20 float switch and other industrial equipment.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4...7.75 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Stainless steel 316
Viton
Stainlesss steel 304
Yellow brass
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.81 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Float switch
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 4.078 kg
Warranty: 18 months
