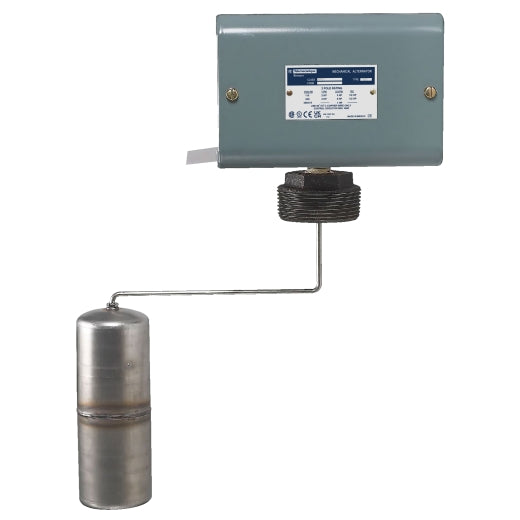

Details for 9038CG33Z20

NCO-9038CG33Z20: SQUARE D Alternate Float Switch The NCO-9038CG33Z20 from SQUARE D serves as an Alternate Float Switch equipped with Viton packing for reliable liquid level detection. Viton is a high-performance elastomer known for its exceptional resistance to harsh chemicals, extreme temperatures, and aging, making it ideal for demanding industrial applications. The switch features a rugged construction to withstand the rigors of industrial environments and ensure long-lasting performance. Its compact design allows for easy installation in various applications. Key Features: - Viton packing for superior chemical and temperature resistance - Robust construction for durability in industrial settings - Compact design for ease of installation Applications: - Liquid level detection in corrosive, high-temperature, and aging environments - Suitable for use in chemical processing, oil and gas, and other demanding industries Our HVAC supply store offers the NCO-9038CG33Z20 at competitive prices with fast shipping. Contact us today for more information or to place an order!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4...7.75 in adjustable
Float position: Right
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass
Stainless steel 316
Stainlesss steel 304
Viton
Cast iron
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 3.94 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Rod
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.9 cm
Package 1 Width: 27.7 cm
Package 1 Length: 31.5 cm
Package 1 Weight: 3.89 kg
Warranty: 18 months
