9038CG33 | Float Switch: 575 VAC 1HP Type C + Options | SQUARE D

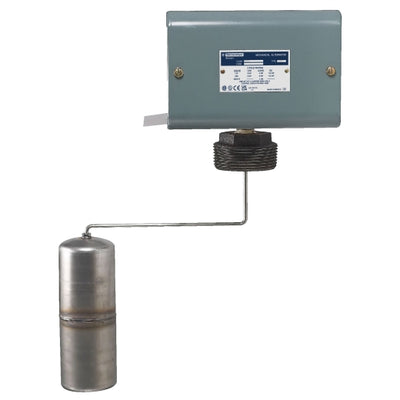

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9038CG33
Overview
Details for 9038CG33
SQUARE D NCO-9038CG33 Square D Float Switch
The SQUARE D NCO-9038CG33 Float Switch is an essential component for liquid level monitoring in various industrial environments. This 4.25" Right Float Switch is designed to provide reliable control over liquid levels in tanks, reservoirs, and other liquid-containing applications.
Crafted by the renowned brand SQUARE D, this float switch features a durable and robust construction to withstand harsh industrial conditions. Its 4.25" right float ensures accurate liquid level detection and triggers the switch to open or close, controlling the flow of liquid or activating alarms when preset levels are reached.
With its precise performance and dependability, the SQUARE D NCO-9038CG33 Float Switch is ideal for controlling liquid levels in a wide range of applications, including chemical processing, water treatment, wastewater management, and other industrial settings where precise liquid level monitoring is crucial.
Our HVAC supply store offers the best prices and fast shipping for your SQUARE D NCO-9038CG33 Float Switch and other industrial equipment needs. Shop now and experience the exceptional quality and performance of SQUARE D products backed by our reliable service.
Specifications
- Range of product
- Square D Pumptrol
- Product or component type
- Mechanical alternator
- device application
- Closed tank with bushing
- device short name
- 9038C
- Product specific application
- Mechanically alternating the operation of two pumps or motors
- electrical circuit type
- Power circuit
- Quantity per set
- Set of 1
- Type of packing
- Individual
- Product destination
- For closed tank
- device mounting
- Screw-in bushing
- Cable entry number
- 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
- Contacts type and composition
- 4 NC, snap action, DPST-DB, Form YY
- Controlled fluid
- Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C - Motor power kW
- 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC - Electrical connection
- Screw-clamp terminals, clamping capacity: 10 AWG
- Contact operation
- Contacts close on liquid rise
- Float movement
- 4...7.75 in adjustable
- Float position
- Right
- Float rod angle
- 90° (offset)
- Short-circuit protection
- 20 A cartridge fuse, type gG
- Local signalling
- With external pointer
- Materials in contact with fluid
- Cast iron
Nitrile (Buna-N) or equivalent rubber
Stainlesss steel 304
Yellow brass
Stainless steel 316 - Enclosure material
- Painted cold-rolled steel
- Operating position
- Vertical position only
- Electrical durability
- 100 cycles, operating rate <60 cyc/mn
- Mechanical durability
- 300 cycles
- Terminal block type
- 8 terminals
- maximum operating rate
- 60 cyc/mn
- [Ui] rated insulation voltage
- 575 V conforming to UL 508
- Net weight
- 3.97 kg
- Terminals description ISO n°1
- Line-load-load-line
- Factory modification
- Without
- kit composition
- Rod
Float switch
Float - Standards
- UL 508
CE - Ambient air temperature for operation
- -30…104 °C
- Ambient air temperature for storage
- -30…104 °C
- NEMA degree of protection
- NEMA 1 conforming to UL 50
- product certifications
- CSA file LR25490
UL listed file E12158 - Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 23.6 cm
- Package 1 Width
- 28.4 cm
- Package 1 Length
- 31.5 cm
- Package 1 Weight
- 3.86 kg
- Warranty
- 18 months
