9038CG32Z20 | Float Switch: 575 VAC 1HP Type C + Options | SQUARE D

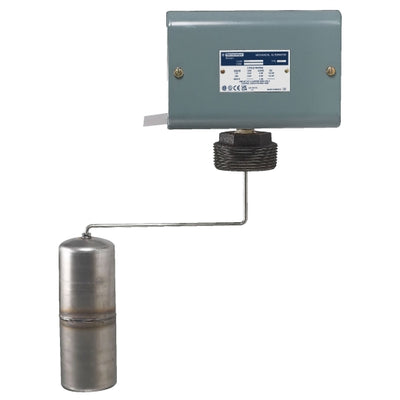

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG32Z20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9038CG32Z20 Documents

Datasheet More Info

Overview

Details for 9038CG32Z20

Dependable Floatswitch Protection: Square D 9038CG32Z20 Float SwitchThe Square D 9038CG32Z20 is a highly reliable and durable float switch designed to monitor liquid levels in demanding industrial applications. Its robust construction and accurate performance make it ideal for a wide range of fluid level control tasks. Safe and Efficient Operation: Built with a corrosion-resistant stainless steel float and switch assembly, this float switch provides long-lasting performance in harsh or corrosive environments. It features a double-pole, single-throw (DPST) contact configuration for dependable switching of electrical circuits. Versatile and Customizable: The 9038CG32Z20 float switch offers adjustable mounting options for flexibility in installation. Its compatibility with voltages up to 575V and its ability to handle currents up to 20 amps make it suitable for various electrical systems and applications. Technical Specifications: Brand: SQUARE D SKU: 9038CG32Z20 Voltage Rating: 575V Current Rating: 20A Contact Configuration: DPST Material: Stainless Steel Float and Switch Adjustable Mounting Meet your industrial liquid level monitoring needs with the Square D 9038CG32Z20 Float Switch. Contact our HVAC supply store today for competitive pricing and fast shipping on all your essential electrical equipment.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6.5...13 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Yellow brass
Viton
Stainless steel 316
Stainlesss steel 304
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 4.023 kg
Warranty: 18 months
