Overview

Details for 9038CG32

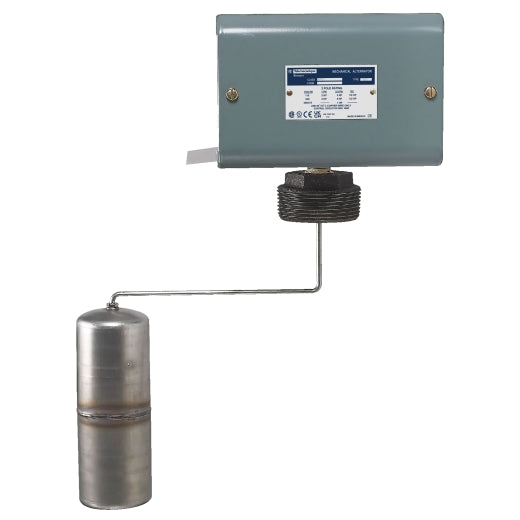

Float Switch for Mechanical Alternators: NCO-9038CG32 by SQUARE D The NCO-9038CG32 Float Switch is a reliable device designed for use with mechanical alternators. This robust switch features a compact design, making it suitable for various applications where space is limited. Constructed with durable materials, the NCO-9038CG32 ensures longevity and dependable operation even in demanding environments. Its ability to withstand harsh conditions makes it ideal for industrial and commercial settings. The technical specifications of the NCO-9038CG32 Float Switch include: * Brand: SQUARE D * SKU: 9038CG32 * Description: Float Switch for Mechanical Alternators Trust our HVAC supply store for the best prices and fast shipping on your NCO-9038CG32 Float Switch and other essential industrial components. Contact us now for inquiries and orders.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6.5...13 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass
Stainless steel 316
Cast iron
Stainlesss steel 304
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Float
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.9 cm
Package 1 Width: 28.4 cm
Package 1 Length: 30.7 cm
Package 1 Weight: 3.81 kg
Warranty: 18 months
