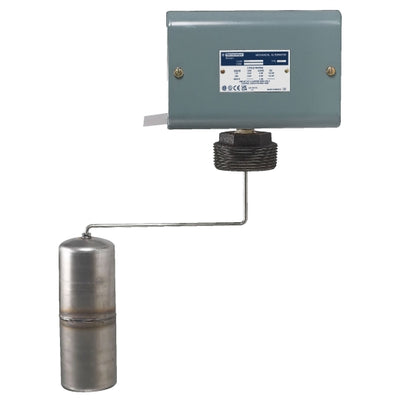

9038CG31 | MECH ALTERNATOR 575 VAC 1HP Type C | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038CG31

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9038CG31 Documents

Datasheet More Info

Overview

Details for 9038CG31

SQUARE D 9038CG31 CLOSED TANK ALT.OPEN/FALLThe SQUARE D 9038CG31 CLOSED TANK ALT.OPEN/FALL is a high-quality, heavy-duty tank designed for use in commercial and industrial applications. Made of durable materials, this tank is built to withstand harsh conditions and provide years of reliable service. The 9038CG31 is a closed tank with an alternative open/fall feature, making it ideal for use in applications where both open and closed storage are required. The tank has a capacity of 31 gallons and is equipped with a variety of features that make it easy to use and maintain. These features include a large access door, a built-in drain, and a sturdy steel construction. The tank is also powder-coated for added durability and corrosion resistance. Our HVAC supply store offers the best prices and fast shipping for your SQUARE D 9038CG31 CLOSED TANK ALT.OPEN/FALL.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Closed tank with bushing
device short name: 9038C
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 8 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6.5...13 in adjustable
Float position: Right
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Cast iron
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 23.6 cm
Package 1 Width: 27.7 cm
Package 1 Length: 31.2 cm
Package 1 Weight: 3.9 kg
Warranty: 18 months
