9038AG1N4 | Float Switch: 575 VAC 1HP Type A + Options | SQUARE D

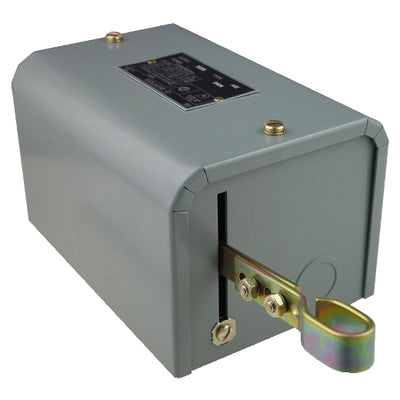

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038AG1N4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9038AG1N4 Documents

Datasheet More Info

Overview

Details for 9038AG1N4

Introducing the NCO-9038AG1N4 DualPumpSwitch, a versatile and reliable solution for industrial applications from SQUARE D. This compact switch is engineered to provide seamless and efficient operation for dual pumps, ensuring optimal performance and system reliability. With its robust construction and durable components, the NCO-9038AG1N4 offers exceptional longevity and withstands the demands of industrial environments. It features a user-friendly design, simplifying installation and maintenance, minimizing downtime and maximizing productivity. The DualPumpSwitch is equipped with advanced control capabilities, allowing for precise pump management and automation. Its advanced sensing system monitors pump status, providing real-time feedback for proactive maintenance and troubleshooting. Additionally, the switch offers robust connectivity options, enabling remote monitoring and control for enhanced operational efficiency. Whether you're looking to optimize your water pumping system or improve the reliability of your industrial processes, the NCO-9038AG1N4 DualPumpSwitch is the ideal solution. Its combination of advanced features and rugged construction ensures maximum uptime and cost-effective operation. Choose our HVAC supply store for the best prices and fast shipping on all your industrial supply needs.

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Open tank
device short name: 9038A
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank
device mounting: Pedestal
Cable entry number: 4 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 20 ozf at minimum adjustment
17 ozf at maximum adjustment
Force up to trip: 18 ozf at minimum adjustment
16 ozf at maximum adjustment
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Two-level non-alternating unit
kit composition: Rod and float are to be choosen in accessories
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 2.812 kg
Warranty: 18 months
