9038AG1C | Float Switch: 575 VAC 1HP Type A + Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9038AG1C

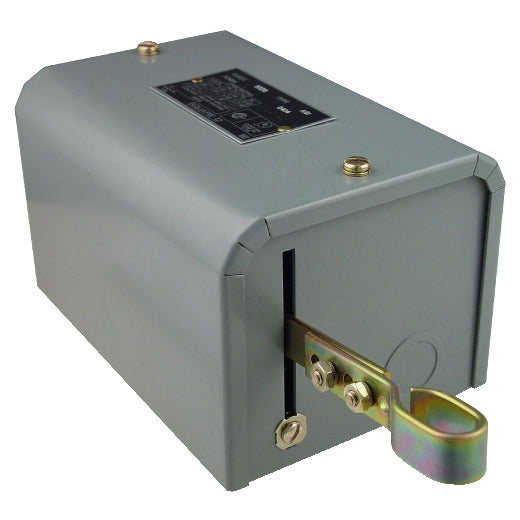

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038AG1C

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9038AG1C Documents

Datasheet More Info

Overview

Details for 9038AG1C

Introducing NCO 9038AG1C: A Comprehensive Float Switch for Industrial Applications The NCO 9038AG1C float switch, manufactured by Schneider Electric (Square D), offers a reliable and robust solution for fluid level monitoring and control in industrial settings. Engineered to withstand demanding environments, this 2-pole float switch features a NEMA 1 enclosure, ensuring protection against dust, falling dirt, and light water exposure. Its primary function lies in detecting liquid levels and initiating appropriate control actions. This versatile switch is commonly employed in a wide range of industrial applications, including tanks, reservoirs, sumps, and pumping systems. It effectively prevents pump damage from dry running or overflow, ensuring optimal equipment performance and operational efficiency. The NCO 9038AG1C float switch is designed to operate with a variety of liquids, making it suitable for various industrial processes. Its rugged construction and reliable performance ensure long-lasting operation, minimizing downtime and maintenance costs. Our HVAC supply store is your trusted distributor for the NCO 9038AG1C float switch. We provide competitive pricing, prompt shipping, and expert support to meet your industrial needs. Contact us today to place your order and experience the benefits of this exceptional product!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Open tank
device short name: 9038A
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank
device mounting: Pedestal
Cable entry number: 4 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 20 ozf at minimum adjustment
17 ozf at maximum adjustment
Force up to trip: 18 ozf at minimum adjustment
16 ozf at maximum adjustment
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Compensating spring
kit composition: Rod and float are to be choosen in accessories
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 29.871 cm
Package 1 Width: 11.76 cm
Package 1 Length: 75.872 cm
Package 1 Weight: 2.195 kg
Warranty: 18 months
