9036DG2R | Float Switch: 575 VAC 1 HP Type D+ Options | Schneider Electric (Square D)

Schneider Electric (Square D) | 9036DG2R

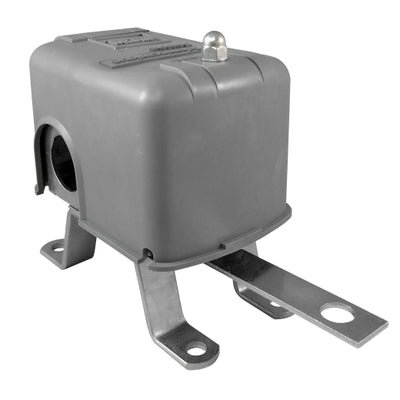

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9036DG2R

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) 9036DG2R Documents

Datasheet More Info

Overview

Details for 9036DG2R

NCO-9036DG2R, Electrical Float Switch, 2 Pole, Open on RiseThis NCO-9036DG2R Electrical Float Switch from Schneider Electric (Square D) is a highly reliable and efficient solution for liquid level control in demanding industrial applications. Designed with a 2-pole configuration, it offers precise and reliable float switching functionality. Key Features: - 2-pole design for precise liquid level control - Open on rise operation for optimal performance in various liquid level sensing applications - Robust construction for durability in harsh industrial environments The NCO-9036DG2R Float Switch is engineered to operate in NEMA1 environments, ensuring reliable performance even in challenging conditions. Its compact design allows for easy installation in various equipment and systems. Applications: - Liquid level monitoring and control in industrial settings - Pump control based on liquid level variations - Overflow and dry-run protection in tanks and reservoirs - Suitable for a wide range of industrial liquids Shop our HVAC supply store for the best prices and fast shipping on all your industrial supply needs. Trust NCO-9036DG2R for reliable and efficient liquid level control in your industrial applications.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Open tank general purpose
device short name: 9036D
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank or sump
device mounting: Pedestal
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NO, snap action, DPST-DB, Form XX
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts open on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 8 ozf
Force up to trip: 9 ozf
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 0.54 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.43 cm
Package 1 Width: 8.636 cm
Package 1 Length: 17.78 cm
Package 1 Weight: 508.0 g
Unit Type of Package 2: PAL
Number of Units in Package 2: 336
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 181.437 kg
Warranty: 18 months
