9038AG1 | MECHANICAL ALT 575 VAC 1HP Type A | SQUARE D

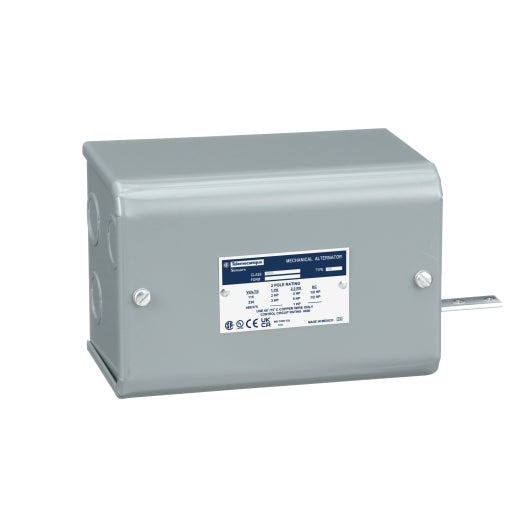

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9038AG1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9038AG1 Documents

Datasheet More Info

Overview

Details for 9038AG1

2-Pole Float Switch with Close-on-Rise Operation: The 9038AG1 from SQUARE D is a 2-pole float switch designed for use in liquid level control applications. Its close-on-rise operation means that the switch contacts close when the liquid level rises and open when the level falls. Compact and Durable: The 9038AG1 features a compact design, making it suitable for use in spaces with limited room. It is constructed with corrosion-resistant materials, ensuring durability in harsh industrial environments. Versatile Applications: This float switch is commonly used in various industrial applications, including water tanks, sumps, and chemical solutions. It helps maintain proper liquid levels, preventing overflows or dry-running conditions. Easy Installation: The 9038AG1 comes with mounting brackets for easy installation. It has a 1/2" NPT male thread for direct connection to pipes or tanks. SPECIFICATIONS: â€¢ Poles: 2 â€¢ Operation: Close-on-Rise â€¢ Voltage: Not specified â€¢ Amperage: Not specified â€¢ Material: Nylon â€¢ Weight: Not specified Our HVAC supply store: Your Trusted Source Shop now at Our HVAC supply store for the best prices and fast shipping on the 9038AG1 float switch and other industrial products!

Specifications

Range of product: Square D Pumptrol
Product or component type: Mechanical alternator
device application: Open tank
device short name: 9038A
Product specific application: Mechanically alternating the operation of two pumps or motors
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank
device mounting: Pedestal
Cable entry number: 4 knock-outs for 1/2" or 3/4"conduit conforming to UL 508
Contacts type and composition: 4 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 20 ozf at minimum adjustment
17 ozf at maximum adjustment
Force up to trip: 18 ozf at minimum adjustment
16 ozf at maximum adjustment
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Painted cold-rolled steel
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 8 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod and float are to be choosen in accessories
Float switch
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 13.2 cm
Package 1 Width: 14.5 cm
Package 1 Length: 25.4 cm
Package 1 Weight: 2.05 kg
Warranty: 18 months
