Details for 9037HG36

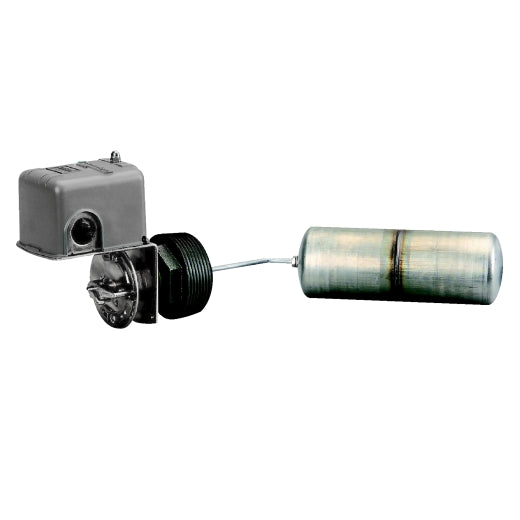

9037HG36 Float Switch from SQUARE D The 9037HG36 Float Switch from SQUARE D is an essential monitoring device for industrial liquid level applications. This reliable float switch offers accurate and dependable level detection for liquids with specific gravities ranging from 0.6 to 0.8. With its compact size and rugged construction, the 9037HG36 is ideal for use in corrosive environments and applications where space is limited. Its durable construction ensures extended service life and consistent performance. Technical Specifications: - SKU: 9037HG36 - Brand: SQUARE D - Liquid Specific Gravity Compatibility: 0.6 to 0.8 - Switching Capacity: 125VAC/12VDC, 5A - Contact Configuration: SPDT - Material: PVC - Dimensions: 2.75" x 1.5" Benefits: - Accurate and reliable liquid level detection - Durable construction for harsh environments - Compact size for limited-space applications - Wide range of liquid compatibility Applications: - Industrial fluid tanks and reservoirs - Corrosive or hazardous liquid monitoring - Food and beverage processing - Chemical and pharmaceutical industries Shop our HVAC supply store today for the best prices and fast shipping on all your industrial products, including the 9037HG36 Float Switch from SQUARE D.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 2.5...5 in adjustable
Float position: Left
Float rod angle: 90°
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainless steel 316
Yellow brass
Stainlesss steel 304
Cast iron
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.03 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float
Rod
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 19.3 cm
Package 1 Width: 18.0 cm
Package 1 Length: 30.2 cm
Package 1 Weight: 1.91 kg
Warranty: 18 months
