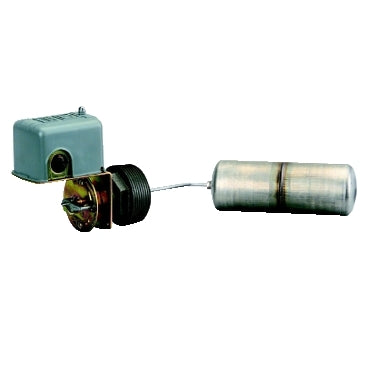

9037HG35R | Float switch, Square D Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NO DPST DB contacts | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037HG35R

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9037HG35R Documents

More Info

Overview

Details for 9037HG35R

SQUARE D 9037HG35R FLOAT SWITCH The SQUARE D 9037HG35R Float Switch is a heavy-duty device designed to control the level of liquids in tanks, sumps, or other containers. It features a durable construction with a 575VAC rating and a 1HP capacity, making it suitable for industrial applications. The open/rise mechanism ensures reliable operation in both open and closed positions. Key Features: * 575VAC rating * 1HP capacity * Open/rise mechanism * Durable construction Benefits: * Controls liquid level effectively * Suitable for industrial applications * Provides reliable and consistent operation Applications: * Tanks and sumps * Process equipment * Wastewater treatment systems * Industrial machinery Maximize the efficiency of your liquid level control systems with the SQUARE D 9037HG35R Float Switch. Order now from our HVAC supply store for exceptional pricing and fast delivery!

Specifications

Range of Product: Square D Pumptrol
Product or Component Type: Float switch
Device Application: Closed tank
Device short name: 9037H
Product Specific Application: Liquid level control
Electrical circuit type: Power circuit
Quantity per Set: Set of 1
Type of Packing: Individual
Product destination: For closed tank
Device mounting: Screw-in bushing
cable entry number: 3 knock-outs for 1/2" conduit UL 508
contacts type and composition: 2 NO, snap action, DPST-DB, Form XX
controlled fluid: Corrosive fluid specific gravity of 0.85 in or higher, Fresh water specific gravity of 0.85 in or higher 0…220 °F (-18…104 °C), Sea water specific gravity of 0.85 in or higher 0…220 °F (-18…104 °C), Hydraulic oil specific gravity of 0.85 in or higher 0…220 °F (-18…104 °C)
motor power kW: 1.5 kW 2 hp)115 V AC, 1 phase, 2.2 kW 3 hp)115 V AC, 3 phase, 2.2 kW 3 hp)230 V AC, 1 phase, 3.7 kW 5 hp)230 V AC, 3 phase, 0.75 kW 1 hp)460 V AC, 3 phase, 0.75 kW 1 hp)475 V AC, 3 phase, 0.18 kW 0.25 hp)32 V DC, 0.37 kW 0.5 hp)115 V DC, 0.37 kW 0.5 hp)230 V DC
electrical connection: Screw-clamp terminals 10 AWG
contact operation: Contacts open on liquid rise
float movement: 2.5...5 in adjustable
Float position: Right
Float rod angle: 90°
short-circuit protection: 20 A cartridge fuse gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass, Nitrile (Buna-N) or equivalent rubber, Cast iron, Stainless steel 316, Stainlesss steel 304
Enclosure Material: Polypropylene or equivalent
Operating position: Vertical position only
electrical durability: 100 cycles 60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
Maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V UL 508
Net Weight: 4.8 lb(US) (2.18 kg)
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
Kit composition: Float, Float switch, Rod
standards: UL 508, CE
Ambient Air Temperature for Operation: -22…220 °F (-30…104 °C)
Ambient Air Temperature for Storage: -22…220 °F (-30…104 °C)
NEMA degree of protection: NEMA 1 UL 50
Product Certifications: UL listed file E12158, CSA file LR25490
Category: 21601-9037,9038 COMMERCIAL FLOAT SWITCHES
Discount Schedule: CP7G
GTIN: 785901055112
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 18.26 in (46.387 cm)
Package 1 Width: 7.19 in (18.263 cm)
Package 1 Length: 46.39 in (117.823 cm)
Package 1 Weight: 4.80 lb(US) (2.177 kg)
Warranty: 18 months
