Details for 9037HG34R

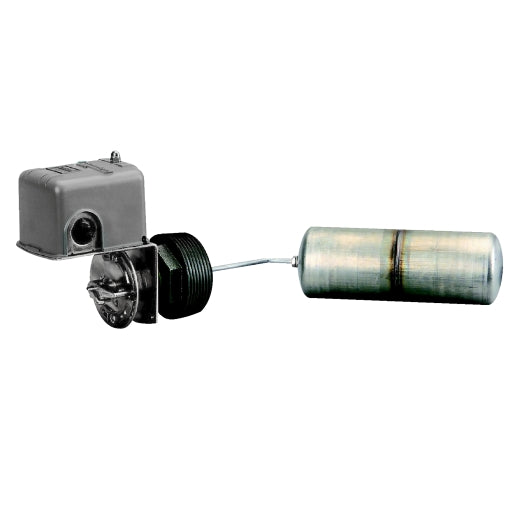

Protect your equipment with the reliable 9037HG34R 2.5" NPT Float Switch from Square D. This industrial-grade float switch features a right-mounted float and is designed to detect liquid levels in tanks or containers. The rugged construction of this switch ensures long-lasting performance in demanding applications. With its 2.5" NPT connection, the 9037HG34R float switch is easy to install in various plumbing systems. The switch operates on a simple float mechanism, ensuring a precise and reliable response to liquid level changes. Its accurate level detection capabilities make it ideal for controlling pumps, valves, or alarm systems based on liquid level. Trust our HVAC supply store for the best prices and fast shipping on your Square D products. Protect your valuable equipment with the 9037HG34R Float Switch, the perfect solution for liquid level monitoring in industrial and commercial applications.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NO, snap action, DPST-DB, Form XX
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts open on liquid rise
Float movement: 2...5 in adjustable
Float position: Left
Float rod angle: 45°
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Yellow brass
Stainless steel 316
Nitrile (Buna-N) or equivalent rubber
Stainlesss steel 304
Cast iron
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.01 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float switch
Float
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 46.387 cm
Package 1 Width: 18.263 cm
Package 1 Length: 117.823 cm
Package 1 Weight: 2.009 kg
Warranty: 18 months
