Details for 9037HG33F3Z20

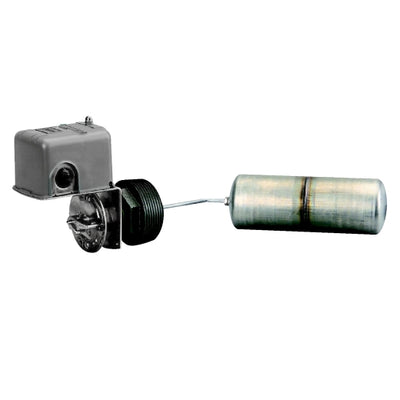

SQUARE D 230V 1PH Float Switch (9037HG33F3Z20) The SQUARE D 230V 1PH Float Switch is designed to control the level of liquids in tanks, reservoirs, and other containers. Featuring a voltage of 230V and a single phase, this float switch provides reliable and accurate liquid level monitoring. Constructed with durable materials, it offers longevity and dependability in various industrial applications. Key Features: * Voltage: 230V * Phase: 1PH * Reliable liquid level control * Durable construction for extended service life * Applications in tanks, reservoirs, and containers Our shop, our HVAC supply store, offers competitive prices and fast shipping. Contact us today to fulfill your industrial supply needs.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 2...5 in adjustable
Float position: Right
Float rod angle: 45°
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Cast iron
Stainless steel 316
Viton
Yellow brass
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.42 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Omit 2.5 inch bushing and float
kit composition: Float
Rod
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 19.8 cm
Package 1 Width: 18.3 cm
Package 1 Length: 29.5 cm
Package 1 Weight: 1.37 kg
Warranty: 18 months
