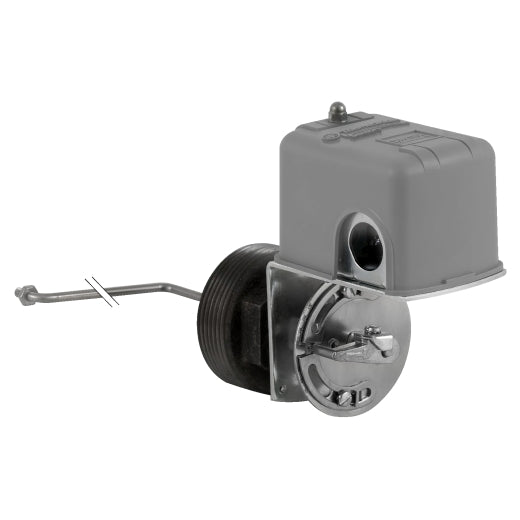

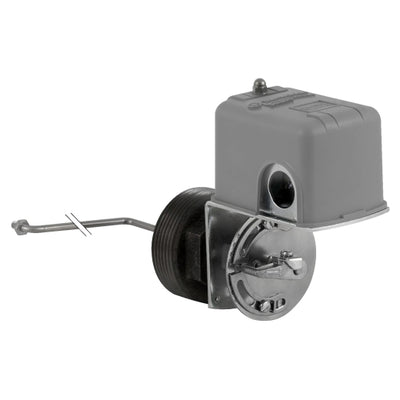

Details for 9037HG32LZ20

2.5" FLT SWT LESS FLT W/VITON (SKU 9037HG32LZ20) by SQUARE D SQUARE D's 2.5" FLT SWT LESS FLT W/VITON is a highly specialized electrical component designed for industrial applications. This product features a compact and durable design that ensures reliable performance in demanding environments. Constructed with high-quality materials, this FLT SWT offers exceptional resistance to corrosion and wear, making it ideal for long-term operation. Its advanced design incorporates a precise seal to prevent fluid leakage, enhancing safety and reliability. With its advanced features, the 2.5" FLT SWT LESS FLT W/VITON by SQUARE D is the perfect solution for industrial engineers and maintenance professionals seeking high-quality electrical components. Our HVAC supply store is your trusted provider of industrial products. We offer competitive prices, fast shipping, and excellent customer support. Choose Our HVAC supply store for all your industrial needs.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6...11.5 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Stainless steel 316
Yellow brass
Viton
Cast iron
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.91 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Omit float
kit composition: Rod
Float switch
Float
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 20.3 cm
Package 1 Width: 24.4 cm
Package 1 Length: 34.5 cm
Package 1 Weight: 1.82 kg
Warranty: 18 months
