9037HG32L | Float Switch: 575 VAC 2HP H + Options | SQUARE D

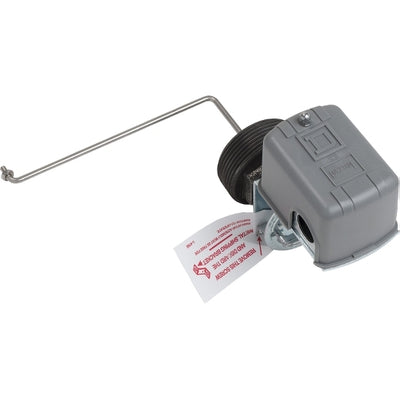

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037HG32L

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9037HG32L Documents

Datasheet More Info

Overview

Details for 9037HG32L

SQUARE D 9037HG32L Float Switch: Designed for Industrial Applications The SQUARE D 9037HG32L Float Switch is an essential component for various industrial applications. Engineered to withstand high voltages up to 575VAC, this float switch can control motors with a capacity of up to 2HP. Its H+OPT feature ensures precise control over liquid levels, making it ideal for use in pumps, tanks, and other equipment. The robust construction of the 9037HG32L Float Switch ensures durability and long-lasting performance in harsh industrial environments. Whether it's for controlling water levels in tanks or managing liquid flow in pumps, this switch delivers reliable operation. Order your SQUARE D 9037HG32L Float Switch today from our HVAC supply store! We offer competitive prices, fast shipping, and expert support for all your industrial needs. Trust our HVAC supply store for all your electrical and industrial equipment needs.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6...11.5 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Stainlesss steel 304
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.85 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Omit float
kit composition: Float
Float switch
Rod
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 48.387 cm
Package 1 Width: 19.05 cm
Package 1 Length: 122.903 cm
Package 1 Weight: 1.846 kg
Warranty: 18 months
