Details for 9037HG32

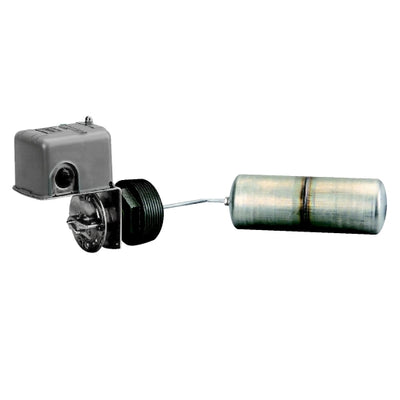

2.5" 2P Float Switch: Close On Rise (SKU: 9037HG32) SQUARE D's 9037HG32 is a highly dependable float switch designed for industrial applications where precise liquid level monitoring is crucial. Its 2.5-inch size and 2-pole configuration provide accurate level sensing, making it suitable for a variety of liquids. Technical Specifications: * 2" x 2" x 12" * 24 VDC * 3" float * 15 ft. cable Key Features: * Compact design for easy installation in confined spaces * Close on rise operation for reliable response to rising liquid levels * Rugged construction for durability in industrial environments Applications: * Sump pumps * Sewage systems * Cooling towers * Boilers * Food processing plants At our HVAC supply store, we provide the most competitive prices and expedited shipping on all our products, ensuring that you receive the vital components you need quickly and cost-effectively. Shop now and experience the difference!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6...11.5 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Stainlesss steel 304
Cast iron
Stainless steel 316
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.13 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float
Float switch
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 20.6 cm
Package 1 Width: 24.4 cm
Package 1 Length: 34.3 cm
Package 1 Weight: 2.12 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 24
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 51.256 kg
Warranty: 18 months
