Details for 9037HG31

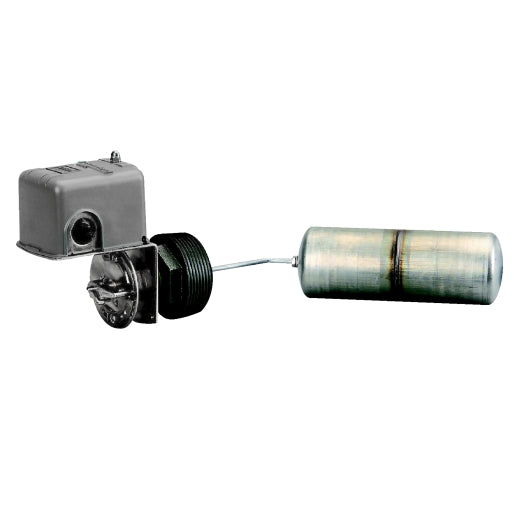

2 1/2" FLOAT SWITCH,THREADEDThe SQUARE D 9037HG31 is a reliable and durable float switch designed for liquid level detection and control applications. This threaded switch features a 2 1/2" float diameter and is constructed with high-quality materials to ensure long-lasting performance. The 9037HG31 is commonly used in various industrial and commercial settings, including tanks, reservoirs, and other liquid containers. Its threaded design allows for easy installation and compatibility with standard pipe fittings. The switch operates on a simple float mechanism, which activates an internal contact when the liquid level reaches a predetermined point. Some of the key benefits of using the SQUARE D 9037HG31 float switch include: - Rugged construction for durability and longevity - Compact size for versatile installation - Threaded design for secure mounting - Simple float mechanism for reliable operation - Suitable for a wide range of liquid level control applications If you're looking for a high-quality and dependable float switch for your liquid level management needs, the SQUARE D 9037HG31 is an excellent choice. Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 6...11.5 in adjustable
Float position: Right
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Cast iron
Yellow brass
Stainless steel 316
Nitrile (Buna-N) or equivalent rubber
Stainlesss steel 304
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.13 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Float
Rod
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 20.3 cm
Package 1 Width: 23.9 cm
Package 1 Length: 34.3 cm
Package 1 Weight: 2.1 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 40
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 85.275 kg
Warranty: 18 months
