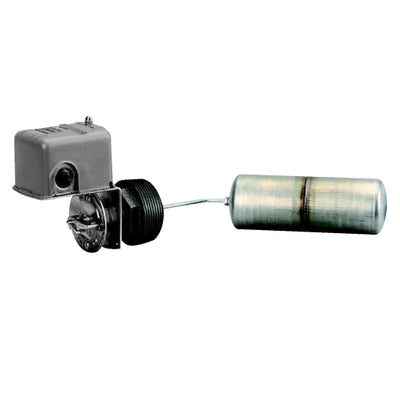

Details for 9037HG30Z20

The Square D 9037HG30Z20 Float Switch is a highly reliable device designed to detect the presence or absence of liquid in a tank or reservoir. With a maximum close/rise value of 50#, this float switch is ideal for applications requiring precise liquid level monitoring and control. Crafted with durable materials, the 9037HG30Z20 offers excellent resistance to corrosion and wear, ensuring longevity even in demanding environments. Its compact design makes it suitable for applications with limited space constraints. The Square D 9037HG30Z20 Float Switch is easy to install and maintain, reducing downtime and maintenance costs. It provides accurate and consistent liquid level detection, making it an essential component for various industrial, commercial, and residential applications. Our HVAC supply store is your prime source for the Square D 9037HG30Z20 Float Switch. We offer competitive pricing, fast shipping, and expert customer support to meet your project requirements. Contact us today to place your order!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037H
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Screw-in bushing
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…121 °C
Sea water at specific gravity of 0.85 in or higher -18…121 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…121 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…121 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: 4.25...8.25 in adjustable
Float position: Left
Float rod angle: 90° (offset)
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: With external pointer
Materials in contact with fluid: Viton
Cast iron
Yellow brass
Stainless steel 316
Stainlesss steel 304
Enclosure material: Polypropylene or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.96 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Rod
Float switch
Float
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 19.3 cm
Package 1 Width: 18.0 cm
Package 1 Length: 30.0 cm
Package 1 Weight: 1.93 kg
Warranty: 18 months
