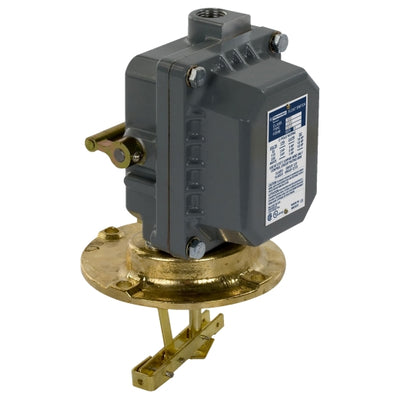

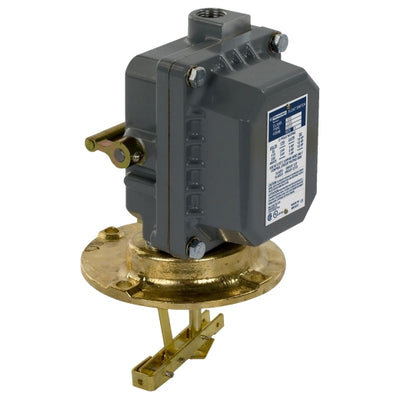

9037EW9 | Float Switch: 575 VAC 1HP E + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037EW9

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9037EW9 Documents

Datasheet More Info

Overview

Details for 9037EW9

SQUARE D 9037EW9: A Professional-Grade Electrical Solution This SQUARE D 9037EW9 is a superior electrical component designed for industrial applications. Its robust construction, including a durable frame and corrosion-resistant finish, ensures reliable operation and a long service life. The 9037EW9 seamlessly integrates with various electrical systems, offering flexibility and ease of installation. Its compact design allows for efficient and space-saving placement. This device ensures optimal energy utilization, providing reliable performance for demanding industrial needs. Its high performance and durability make it a valuable investment for professionals in fields such as manufacturing, maintenance, and infrastructure development. Our HVAC supply store is your trusted source for high-quality electrical components at unbeatable prices. Our commitment to customer satisfaction and lightning-fast shipping guarantees a seamless procurement experience. Order your 9037EW9 today and experience the difference!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037E
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Flange
Cable entry number: 2 conduit entries for 3/4"-14 NPT conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable fixed
Float position: Any
Float rod angle: Horizontal
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Materials in contact with fluid: Stainlesss steel 304
Stainless steel 316
Yellow brass
Nitrile (Buna-N) or equivalent rubber
Enclosure material: Cast aluminium
Operating position: Vertical or horizontal position
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 3.13 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 4 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 48.387 cm
Package 1 Width: 19.05 cm
Package 1 Length: 122.903 cm
Package 1 Weight: 2.985 kg
Warranty: 18 months
