9037EG8 | Float Switch: 575 VAC 1HP E + Options | SQUARE D

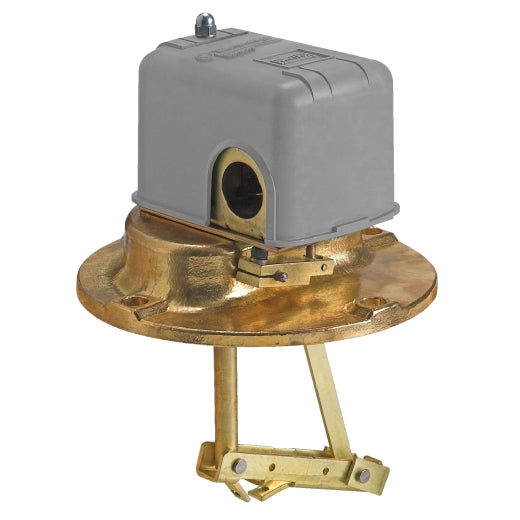

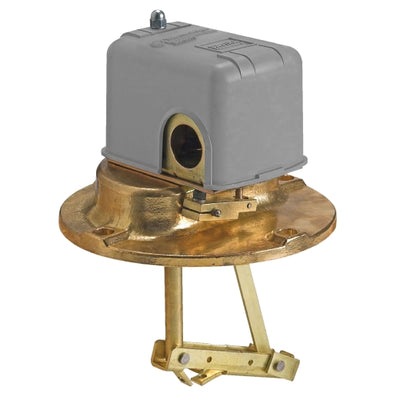

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9037EG8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9037EG8 Documents

Datasheet More Info

Overview

Details for 9037EG8

SQUARE D 9037EG8 Float Switch The SQUARE D 9037EG8 is a versatile float switch designed for use in various liquid level sensing applications. It features a rugged construction and reliable operation, making it suitable for both industrial and commercial use. Benefits: Durable Construction: Constructed with high-quality materials for exceptional durability and resistance to harsh conditions. High Accuracy: Ensures precise level detection for reliable control and monitoring. Versatile Installation: Suitable for mounting in tanks, reservoirs, and other containers of varying shapes and sizes. Low Maintenance: Requires minimal upkeep, reducing operational downtime. Applications: Level Control: Monitor and control liquid levels in tanks, sumps, and other vessels. Pump Control: Automatically activate or deactivate pumps based on liquid level. Alarm Systems: Trigger alarms when liquid levels reach predetermined points. Technical Specifications: SKU: 9037EG8 Brand: SQUARE D Type: Float Switch Materials: Brass, Plastic, Copper Switch Type: Normally Open (NO) Float Arm Length: 12" Electrical Connection: Two-wire Our HVAC supply store: Your Source for Quality Products Our HVAC supply store is the leading provider of high-quality industrial supplies, offering competitive prices and fast shipping. Contact us today to order your SQUARE D 9037EG8 Float Switch and experience the benefits of reliable liquid level control.

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Closed tank
device short name: 9037E
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For closed tank
device mounting: Flange
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher -18…104 °C
Sea water at specific gravity of 0.85 in or higher -18…104 °C
Hydraulic oil at specific gravity of 0.85 in or higher -18…104 °C
Corrosive fluid at specific gravity of 0.85 in or higher -18…104 °C
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable fixed
Float position: Any
Float rod angle: Horizontal
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Materials in contact with fluid: Nitrile (Buna-N) or equivalent rubber
Stainless steel 316
Stainlesss steel 304
Yellow brass
Enclosure material: Polypropylene or equivalent
Operating position: Vertical or horizontal position
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 2.00 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: UL listed file E12158
CSA file LR25490
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 18.8 cm
Package 1 Width: 19.3 cm
Package 1 Length: 35.8 cm
Package 1 Weight: 1.89 kg
Warranty: 18 months
