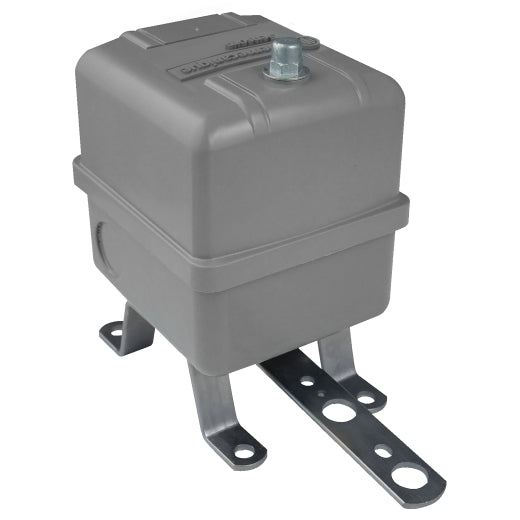

9036GG2R | Float Switch: 575 VAC 5HP G + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9036GG2R

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9036GG2R Documents

Datasheet More Info

Overview

Details for 9036GG2R

2-Pole Open-On-Rise Float Switch [sku] by SQUARE D Protect your equipment from water damage with the reliable 2-Pole Open-On-Rise Float Switch from SQUARE D. This switch is designed with a durable construction to withstand harsh industrial environments, ensuring long-lasting performance. Key Features: â€¢ 2-pole open-on-rise design for reliable operation â€¢ Controls pumps, alarms, or other devices based on liquid level â€¢ Rugged construction for industrial applications â€¢ Easy to install and maintain Applications: â€¢ Sump pumps â€¢ Sewage pumps â€¢ Condensate pumps â€¢ Industrial fluid level monitoring our HVAC supply store offers the best prices and fast shipping on all your industrial supply needs. Order your 2-Pole Open-On-Rise Float Switch today and experience the difference!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Open tank heavy duty
device short name: 9036G
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank or sump
device mounting: Pedestal
Cable entry number: 3 knock-outs for 1/2" conduit conforming to UL 508
Contacts type and composition: 2 NO, snap action, DPST-DB, Form XX
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
3.7 kW (5 hp) at 460 V AC, 1 phase
3.7 kW (5 hp) at 475 V AC, 1 phase
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts open on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 16 ozf long lever
24 ozf short lever
Force up to trip: 22 ozf long lever
30 ozf short lever
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Noryl thermoplastic resin or equivalent
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.01 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: CE
UL 508
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 1 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.7 cm
Package 1 Width: 15.5 cm
Package 1 Length: 19.6 cm
Package 1 Weight: 984.3 g
Unit Type of Package 2: PAL
Number of Units in Package 2: 252
Package 2 Height: 101.6 cm
Package 2 Width: 101.6 cm
Package 2 Length: 121.92 cm
Package 2 Weight: 254.919 kg
Warranty: 18 months
