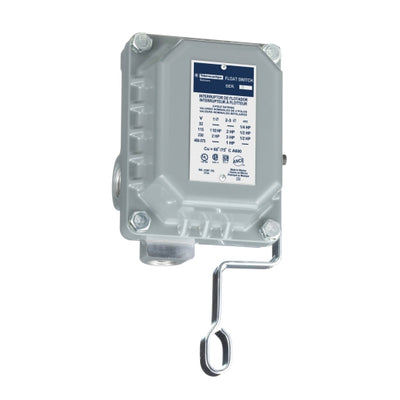

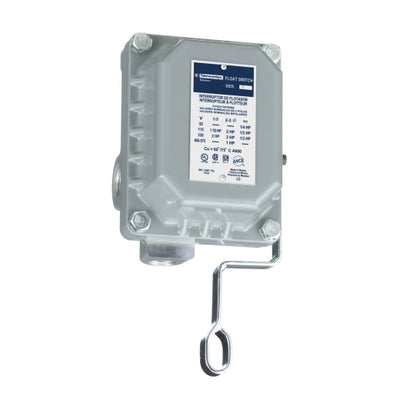

9036DW31 | Float Switch: 230 VAC 1HP D + Options | SQUARE D

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9036DW31

Jump to: Documents Overview Specifications Reviews

Documents and manuals

SQUARE D 9036DW31 Documents

Datasheet More Info

Overview

Details for 9036DW31

SQUARE D Float Switch (9036DW31) The SQUARE D 9036DW31 is a rugged and reliable 230VAC float switch designed for industrial and commercial applications. It features a durable plastic construction and a wide range of mounting options for maximum versatility. This float switch operates on a simple principle, utilizing a float that rises and falls as the liquid level changes. When the liquid level reaches a predetermined point, the float actuates an internal switch, signaling the presence or absence of liquid. The 9036DW31 is ideal for a variety of applications, including sump pumps, sewage pumps, and process control systems. Its compact design and corrosion-resistant construction ensure long-lasting performance in harsh environments. Features: * 230VAC operation * Durable plastic construction * Wide range of mounting options * Compact design * Corrosion-resistant construction Our HVAC supply store offers the best prices and fast shipping for all your industrial supply needs. Order your SQUARE D 9036DW31 Float Switch today!

Specifications

Range of product: Square D Pumptrol
Product or component type: Float switch
device application: Open tank general purpose
device short name: 9036D
Product specific application: Liquid level control
electrical circuit type: Power circuit
Quantity per set: Set of 1
Type of packing: Individual
Product destination: For open tank or sump
device mounting: Pedestal
Cable entry number: 2 conduit entries for 3/4"-14 NPT conforming to UL 508
Contacts type and composition: 2 NC, snap action, DPST-DB, Form YY
Controlled fluid: Fresh water at specific gravity of 0.85 in or higher
Sea water at specific gravity of 0.85 in or higher
Hydraulic oil at specific gravity of 0.85 in or higher
Corrosive fluid at specific gravity of 0.85 in or higher
Motor power kW: 1.5 kW (2 hp) at 115 V AC, 1 phase
2.2 kW (3 hp) at 115 V AC, 3 phases
2.2 kW (3 hp) at 230 V AC, 1 phase
3.7 kW (5 hp) at 230 V AC, 3 phases
0.75 kW (1 hp) at 460 V AC, 3 phases
0.75 kW (1 hp) at 475 V AC, 3 phases
0.18 kW (0.25 hp) at 32 V DC
0.37 kW (0.5 hp) at 115 V DC
0.37 kW (0.5 hp) at 230 V DC
Electrical connection: Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation: Contacts close on liquid rise
Float movement: Variable adjustable
Float position: Any
Float rod angle: Vertical
Force down to trip: 8 ozf
Force up to trip: 8 ozf
Short-circuit protection: 20 A cartridge fuse, type gG
Local signalling: Without
Enclosure material: Cast aluminium
Operating position: Vertical position only
Electrical durability: 100 cycles, operating rate <60 cyc/mn
Mechanical durability: 300 cycles
Terminal block type: 4 terminals
maximum operating rate: 60 cyc/mn
[Ui] rated insulation voltage: 575 V conforming to UL 508
Net weight: 1.89 kg
Terminals description ISO n°1: Line-load-load-line
Factory modification: Without
kit composition: Float switch
Rod and float are to be choosen in accessories
Standards: UL 508
CE
Ambient air temperature for operation: -30…104 °C
Ambient air temperature for storage: -30…104 °C
NEMA degree of protection: NEMA 4 conforming to UL 50
product certifications: CSA file LR25490
UL listed file E12158
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 16.5 cm
Package 1 Width: 19.1 cm
Package 1 Length: 28.4 cm
Package 1 Weight: 1.78 kg
Warranty: 18 months
